7.62mm 排数:1 每排P数:2
2 针位端子块 接头，公引脚，带罩（4 面） 0.300"（7.62mm） 90°，直角 - 通孔
得捷:
TERM BLOCK HDR 2POS 90DEG 7.62MM
欧时:
PC 5/ 2-G-7,62 2way 7.62mm Header
立创商城:
7.62mm 排数:1 每排P数:2
艾睿:

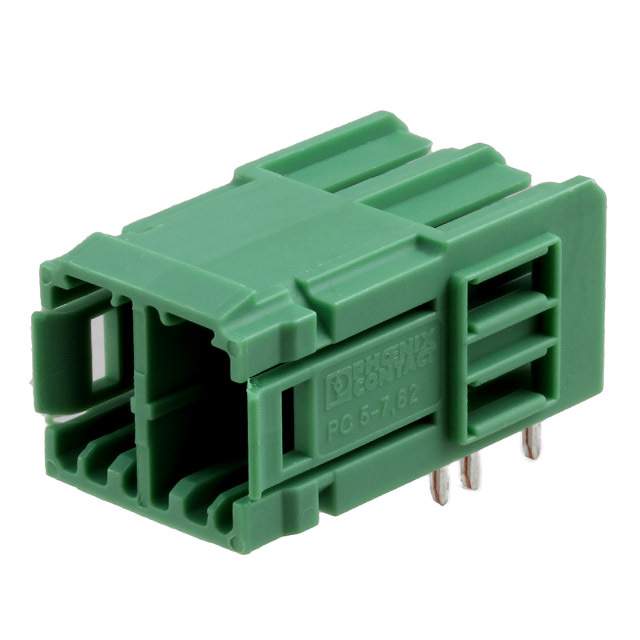

Phoenix Contact brings you their shrouded 1720466 header connector, an important safety tool for protecting your electronic components from accidental damage. This HDR connector has 2 contacts that are plated with tin. This is a 1-row connector. It has a right angle body orientation. Its pitch is 7.62 mm. It has a maximum voltage rating of 500 V@IEC|300V@UL. It has a header type gender. This device has a maximum current rating of 41 A. 1720466 is housed in green polyamide. This product is 33.28 mm long, 13.54 mm tall and 29.25 mm deep. It uses the solder termination method.
Allied Electronics:
Terminal Block HDR 2POS R/A 7.62MM
Verical:
Conn Shrouded Header HDR 2 POS 7.62mm Solder RA Side Entry Thru-Hole
MASTER:
PCB headers - nominal current: 41 A - rated voltage III/2: 630 V - nominal cross section: 6 mm² - number of positions: 2 - pitch: 7.62 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 5 m
Online Components:
Conn Shrouded Header HDR 2 POS 7.62mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 41 A - rated voltage III/2: 630 V - nominal cross section: 6 mm² - ...
