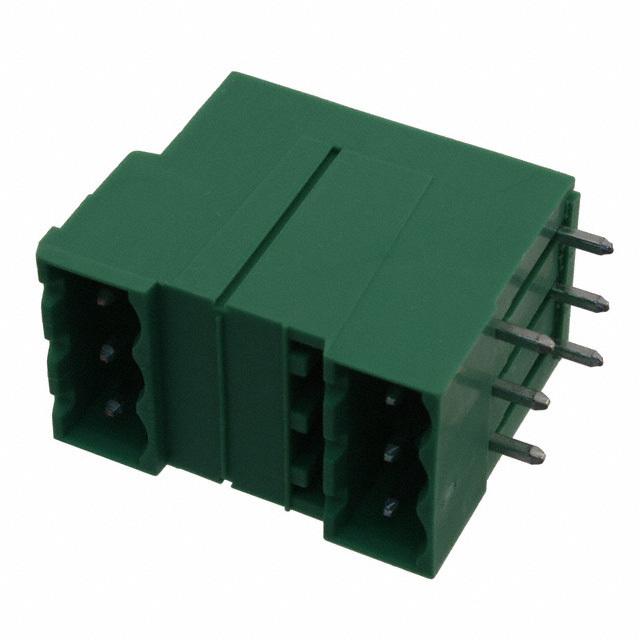

Conn Shrouded Header HDR 3POS 5.08mm Solder RA Thru-Hole
6 针位端子块 接头，公引脚，带罩（4 面） 0.200"（5.08mm） 90°，直角 - 通孔
得捷:
TERM BLOCK HDR 6POS 90DEG 5.08MM
艾睿:
Support physical configuration options for jumper posts by mounting this shrouded 1762376 header connector from Phoenix Contact. This HDR connector has 3 contacts that are plated with tin. It has a maximum voltage rating of 320 V. This is a 2-row connector. It has a header type gender. It has a right angle body orientation. Its pitch is 5.08 mm. This device has a maximum current rating of 10 A. 1762376 is housed in green polyamide. It uses the solder termination method. This product is 17.24 mm long, 28.5 mm tall and 22 mm deep.
Verical:
Conn Shrouded Header HDR 3 POS 5.08mm Solder RA Thru-Hole
MASTER:
PCB headers - nominal current: 10 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 3 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3
Online Components:
Conn Shrouded Header HDR 3 POS 5.08mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 10 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
