间距5mm 6位 插座 12A 320V 弯插 封边

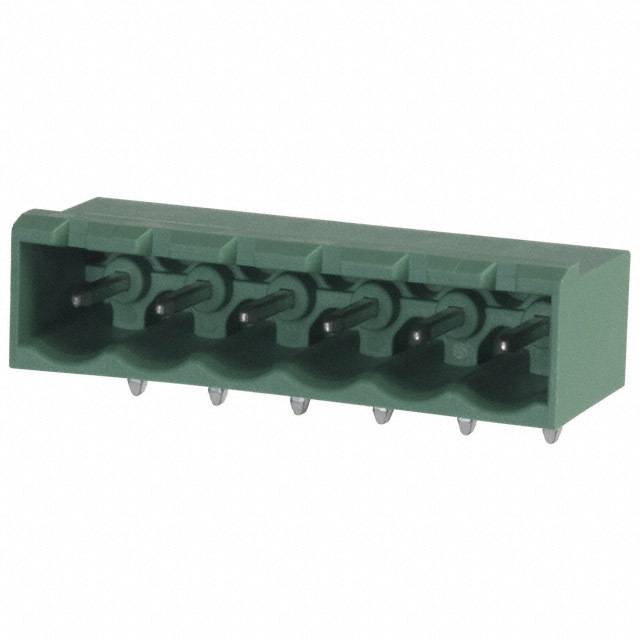

6 针位端子块 接头，公引脚，带罩（4 面） 0.197"（5.00mm） 90°，直角 - 通孔
得捷:
TERM BLOCK HDR 6POS 90DEG 5MM
艾睿:
Safety is an important concern when designing electronic devices. Phoenix Contact&s;s shrouded 1757514 header connector helps protect your equipment from accidental shortages. This HDR connector has 6 contacts that are plated with tin. Its pitch is 5 mm. It has a right angle body orientation. It has a maximum voltage rating of 250 V@IEC|300V@UL. This is a 1-row connector. It has a header type gender. This device has a maximum current rating of 12 A. 1757514 is housed in green polybutylene terephthalate. This product is 32 mm long, 8.6 mm tall and 12 mm deep. It uses the solder termination method.
Allied Electronics:
Conn; TermBlk; PCB; Header; SnglLvl; 90DegAngl; Sldr; 6Pole; 5mmPitch; COMBICON
Verical:
Conn Shrouded Header 4 Sides HDR 6 POS 5mm Solder RA Thru-Hole
MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 6 - pitch: 5 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.5
Online Components:
Conn Shrouded Header HDR 6 POS 5mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
