Phoenix Contact PCB 接线端子块 COMBICON GMSTBVA 系列 5路 7.62mm节距 1766806, 焊接端接, 12A
Conn Shrouded Header HDR 5 POS 7.62mm Solder ST Thru-Hole
得捷:
TERM BLOCK HDR 5POS VERT 7.62MM
欧时:
GMSTBVA 2,5/ 5-G-7,62
艾睿:

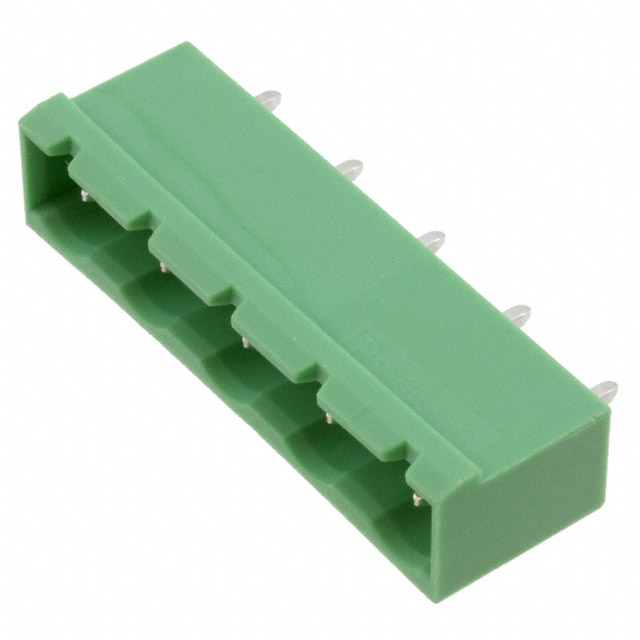

This shrouded 1766806 header connector from Phoenix Contact reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector has 5 contacts that are plated with tin. Its pitch is 7.62 mm. It has a straight body orientation. It has a maximum voltage rating of 630 V. This is a 1-row connector. It has a header type gender. This device has a maximum current rating of 12 A. 1766806 is housed in green polyamide. This product is 38.1 mm long, 12 mm tall and 8.6 mm deep. It uses the solder termination method.
Verical:
Conn Shrouded Header 4 Sides HDR 5 POS 7.62mm Solder ST Thru-Hole
MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - number of positions: 5 - pitch: 7.62 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3
Online Components:
Conn Shrouded Header HDR 5 POS 7.62mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - ...
