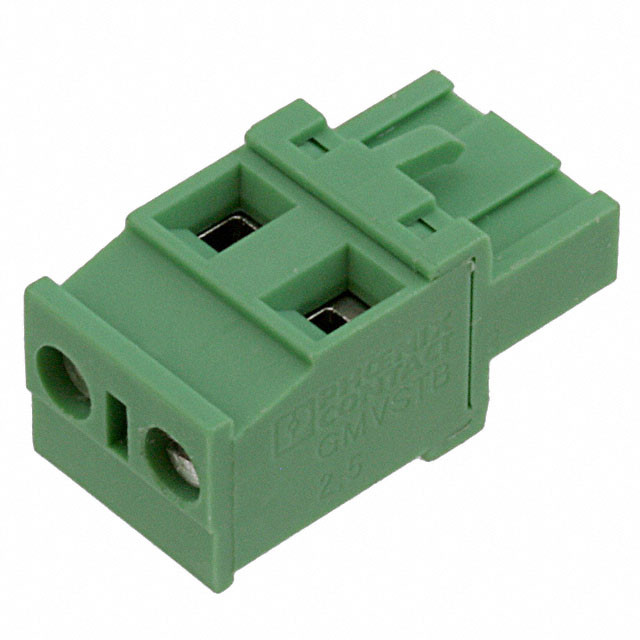

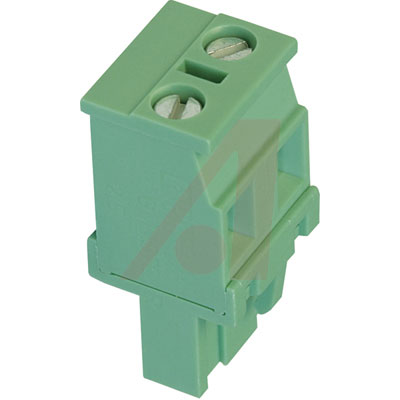

Conn Terminal Block F 2POS 7.5mm Screw ST Cable Mount 12A
**Features:**
* Polyamide Insulating Material
* Voltage: 300, Amps: 10, AWG: 30-12
* Vertical Plugs Can Be Placed Close to the Neighboring Walls and Removed without Compressing the Connected Conductors
得捷:
TERM BLOCK PLUG 2POS 90DEG 7.5MM
贸泽:
Pluggable Terminal Blocks 2 Pos 7.5mm pitch Plug 24-12 AWG Screw
艾睿:
Ideal for testing purposes this 1737709 PCB terminal block manufactured from Phoenix Contact will exceed your needs. This F connector has 2 contacts that are plated with tin. It has a maximum voltage rating of 630 V. It has a straight body orientation. This is a 1-row connector. It has a female type gender. Its pitch is 7.5 mm. 1737709 is housed in polyamide. This device has a maximum current rating of 12 A. It uses the screw termination method. This product is 13 mm long, 26 mm tall and 12.6 mm deep. Its wire is 12-24 AWG.
Allied Electronics:
Conn; Term Blk; Plug; Screw; 2; Screw; 6 kV; 500 V; PA; M3; 7 mm
Verical:
Conn Terminal Block F 2 POS 7.5mm Screw ST Cable Mount 12A
MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - number of positions: 2 - pitch: 7.5 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin
Online Components:
Conn Terminal Block F 2 POS 7.5mm Screw ST Cable Mount 12A
Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - ...
触点数 2
线规 12AWG ~ 30AWG
触点电镀 Tin
额定电压DC 500 V
额定电流 10 A
排数 1
电路数 2
易燃性等级 UL 94 V-0
针脚数 2
额定电流Max 12 A
额定电压Max 630 V
额定电压 300 V
工作电压Max 630 V
引脚间距 7.5 mm
长度 13 mm
宽度 12.6 mm
高度 26 mm
引脚间距 7.5 mm
外壳颜色 Green
颜色 Green
绝缘材质 Nylon
外壳材质 Plastic
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536694040
