1843871

间距3.5mm 10位 插座 带法兰 8A 160V 弯插

Conn Shrouded Header HDR 10 POS 3.5mm Solder RA Thru-Hole

得捷:
TERM BLOCK HDR 10POS 90DEG 3.5MM

贸泽:
可插拔接线端子 10 Pos 3.5mm pitch Through Hole Header

艾睿:

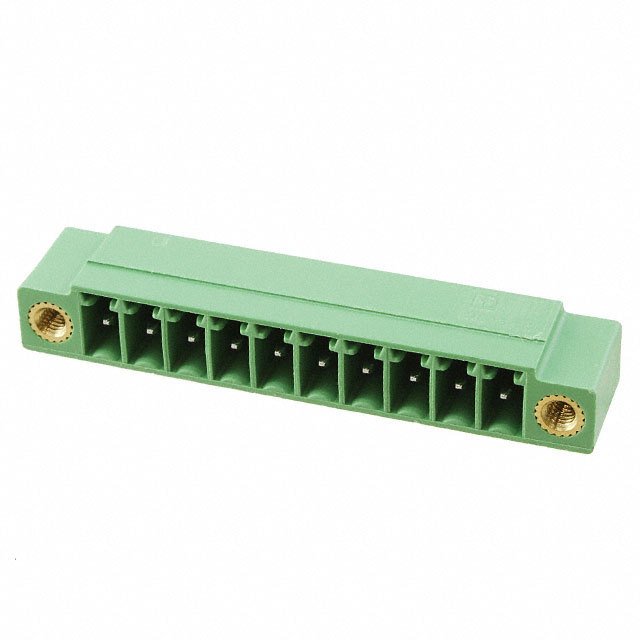

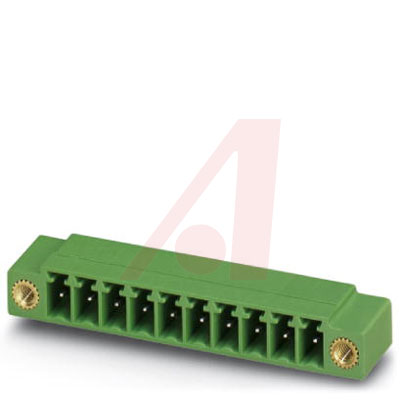

This shrouded 1843871 header connector from Phoenix Contact reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector has 10 contacts that are plated with tin. This is a 1-row connector. Its pitch is 3.5 mm. It has a right angle body orientation. It has a maximum voltage rating of 160 V. It has a header type gender. This device has a maximum current rating of 8 A. It uses the solder termination method. This product is 45.3 mm long, 7.25 mm tall and 9.2 mm deep. 1843871 is housed in green polybutylene terephthalate.

Allied Electronics:
Header; Base Strip; 8A; 160V; 10 Pos.; Green

Verical:
Conn Shrouded Header HDR 10 POS 3.5mm Solder RA Thru-Hole

Online Components:
Conn Shrouded Header HDR 10 POS 3.5mm Solder RA Thru-Hole

Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
