1778014

间距5.08mm 5位 插头 带锁紧螺丝 12A 320V 螺钉式 配线24-12AWG0.2-2.5mm²

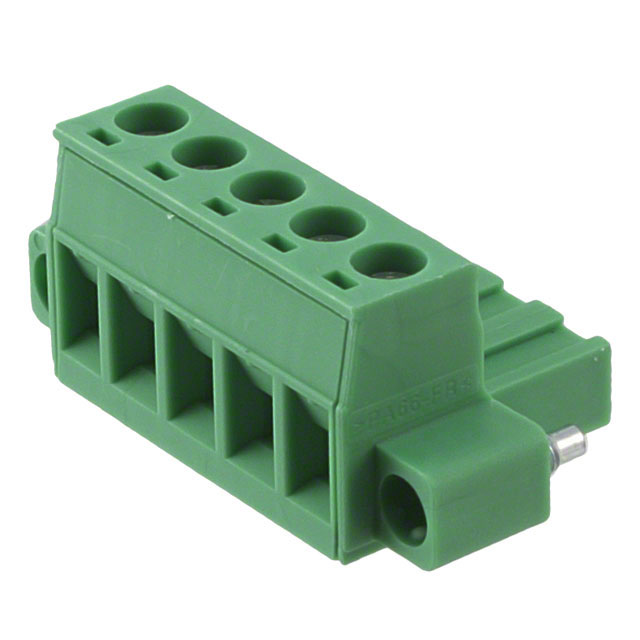

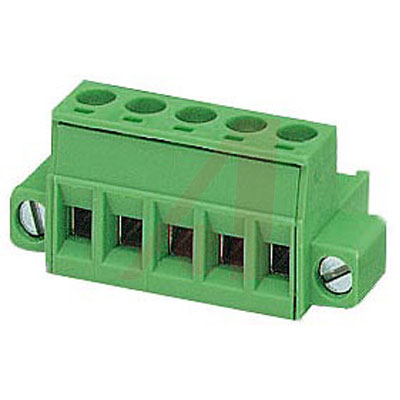

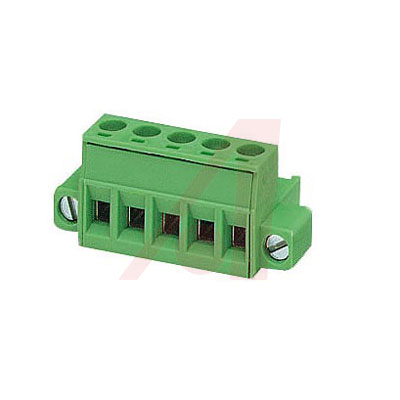

Conn Terminal Block F 5 POS 5.08mm Screw RA Cable Mount 12A

得捷:
TERM BLOCK PLUG 5POS STR 5.08MM

欧时:
Printed-circuit board connector

立创商城:
插头 5.08mm 排数:1 每排P数:5 螺丝固定

贸泽:
Pluggable Terminal Blocks 5 Pos 5.08mm pitch Plug 24-12 AWG Screw

艾睿:
Connecting one or more circuits together, this 1778014 PCB terminal block from Phoenix Contact is a must-have! This F connector has 5 contacts that are plated with tin. It has a right angle body orientation. It has a female type gender. This is a 1-row connector. It has a maximum voltage rating of 320 V. Its pitch is 5.08 mm. This device has a maximum current rating of 12 A. 1778014 is housed in polyamide. This product is 35.2 mm long, 15 mm tall and 18.2 mm deep. It uses the screw termination method. Its wire is 12-24 AWG.

Allied Electronics:
Terminal Block PLUG 5POS STR 5.08MM

Verical:
Conn Terminal Block F 5 POS 5.08mm Screw RA Cable Mount 12A

MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 5 - pitch: 5.08 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin

Online Components:
Conn Terminal Block F 5 POS 5.08mm Screw RA Cable Mount 12A

Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
