1788619

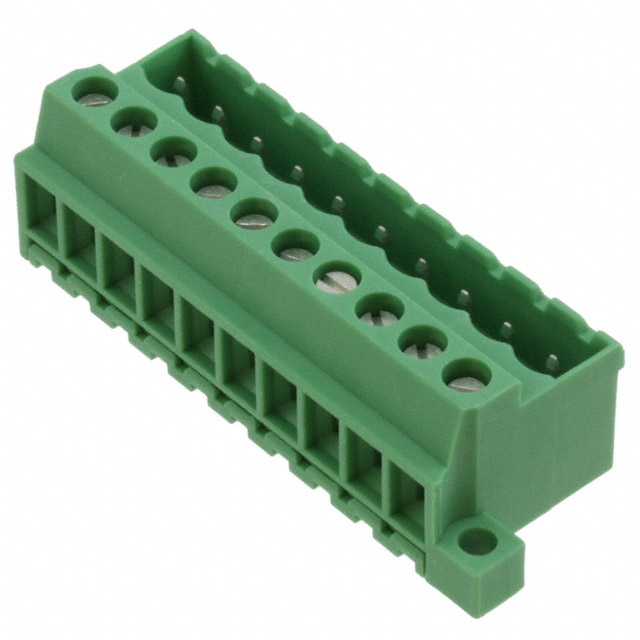

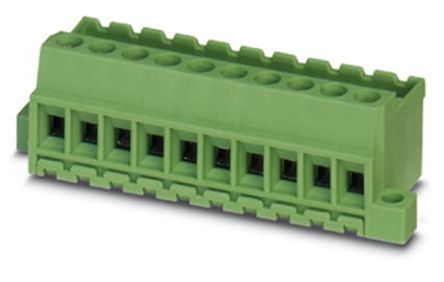

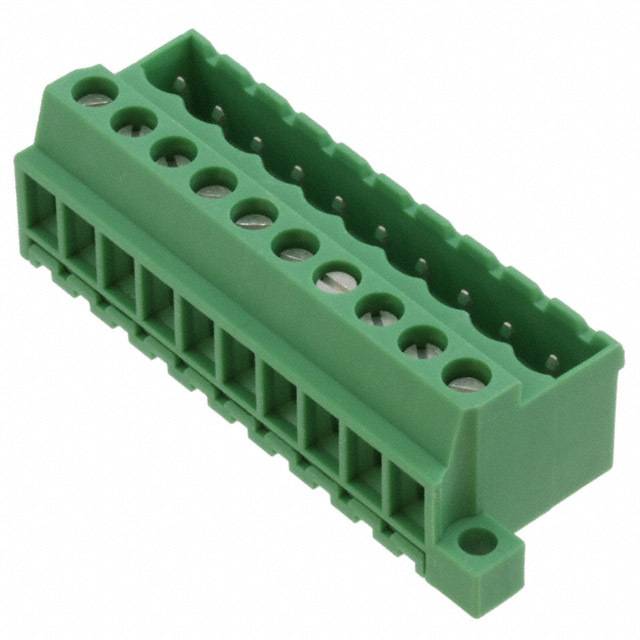

Phoenix Contact MVSTBU 系列 10路 5.08mm节距 印刷电路板管座 1788619, 螺钉端接

10 针位端子块 插座，公形引脚 0.200"（5.08mm） - - 板式安装

得捷:
TERM BLOCK RCPT 10POS 5.08MM

贸泽:
可插拔接线端子 10 Pos 5.08mm pitch Box Header

艾睿:
This 1788619 PCB terminal block from Phoenix Contact will join multiple circuits by connecting to the bare wire. This HDR connector has 10 HDR contacts. It has a header type gender. It has a maximum voltage rating of 320 V. Its pitch is 5.08 mm. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 12 A. 1788619 is housed in polyamide. It uses the screw termination method. This product is 62.12 mm long, 17.3 mm tall and 20.4 mm deep. Its wire is 12-24 AWG.

Allied Electronics:
Plug Component; Base Strip; 12A; 320V; 10 Pos; Screw Conn; MVSTBU 2, 5/10-GB-5, 08

Verical:
Conn Terminal Block HDR 10 POS 5.08mm Screw ST Panel Mount 12A

MASTER:
Direct plug-in block - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 10 - pitch: 5.08 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin - mount

Online Components:
Conn Terminal Block HDR 10 POS 5.08mm Screw ST Panel Mount 12A

Electro Sonic:
Direct plug-in block - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² ...
