1825378

5.08mm 排数:1 每排P数:8

针位端子块

欧时:
IC 2,5/ 8-STF-5,08

得捷:
TERM BLOCK PLUG 8POS STR 5.08MM

立创商城:
5.08mm 排数:1 每排P数:8

贸泽:
Pluggable Terminal Blocks 8 Pos 5.08mm Invert Plug 24-12AWG Screw

艾睿:

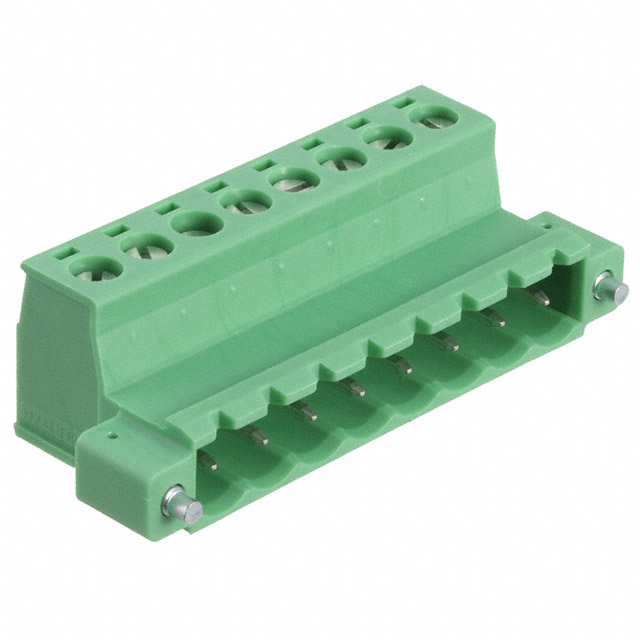

Easily mend a cutoff point in a circuit by using this 1825378 PCB terminal block from Phoenix Contact. This F connector has 8 contacts that are plated with tin. Its pitch is 5.08 mm. It has a female type gender. It has a right angle body orientation. This is a 1-row connector. It has a maximum voltage rating of 320 V. This device has a maximum current rating of 12 A. 1825378 is housed in polyamide. It uses the screw termination method. Its wire is 12-24 AWG. This product is 50.76 mm long, 15 mm tall and 19.2 mm deep.

Allied Electronics:
COMBICON IC SER 5.08mm Pitch Straight Pluggable Trm Blk; PCB Header w/ Screw Term

Verical:
Conn Terminal Block M 8 POS 5.08mm Screw RA Panel Mount 12A

MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 8 - pitch: 5.08 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin

Online Components:
Conn Terminal Block F 8 POS 5.08mm Screw RA Panel Mount 12A

Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
