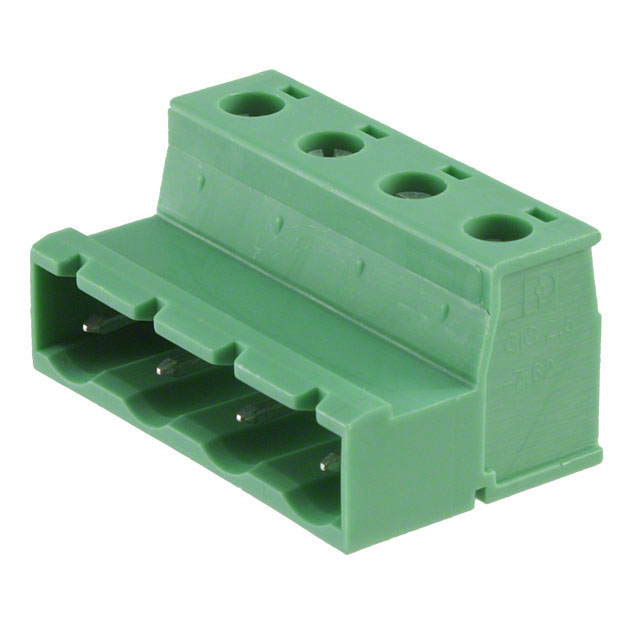

Phoenix Contact COMBICON GIC 系列 7.62mm 节距 4 路 母 绿色 反相插头 1828825, 螺钉端接
Conn Terminal Block F 4 POS 7.62mm Screw RA Cable Mount 12A
得捷:
TERM BLOCK PLUG 4POS STR 7.62MM
欧时:
GIC 2,5/ 4-ST-7,62
艾睿:
Keep your connections strong with this 1828825 PCB terminal block from Phoenix Contact utilizing clamps and screws. This F connector has 4 contacts that are plated with tin. Its pitch is 7.62 mm. It has a right angle body orientation. It has a female type gender. This is a 1-row connector. It has a maximum voltage rating of 630 V. 1828825 is housed in polyamide. This device has a maximum current rating of 12 A. It uses the screw termination method. Its wire is 12-24 AWG. This product is 30.48 mm long, 15 mm tall and 19.2 mm deep.
Verical:
Conn Terminal Block M 4 POS 7.62mm Screw RA Cable Mount 12A
MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - number of positions: 4 - pitch: 7.62 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin
Online Components:
Conn Terminal Block F 4 POS 7.62mm Screw RA Cable Mount 12A
Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - ...
