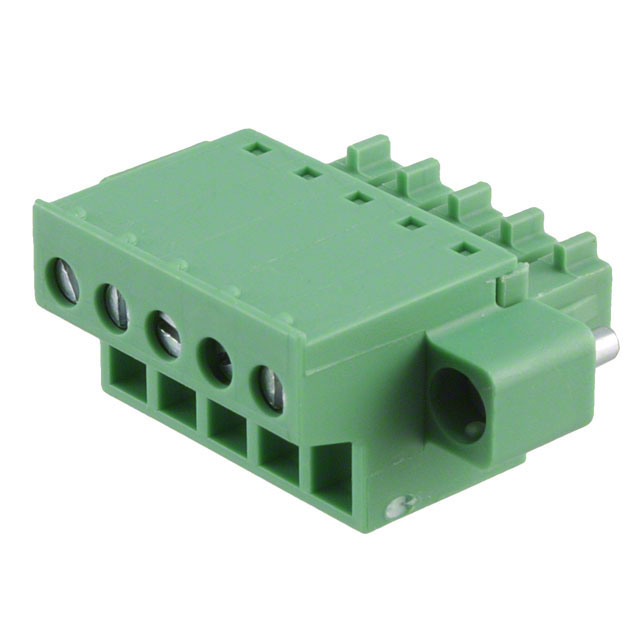

Phoenix Contact MINI COMBICON FRONT-MC 系列 3.81mm 节距 5 路 母 绿色 插头 1850880, 螺钉端接
Conn Terminal Block F 5 POS 3.81mm Screw RA Panel Mount 8A
得捷:
TERM BLOCK PLUG 5POS STR 3.81MM
欧时:
Phoenix Contact 1850880 MINI COMBICON FRONT-MC 系列 3.81mm 节距 5 路 母 插头, 螺钉端接 绿色
贸泽:
Pluggable Terminal Blocks 5 Pos 3.81mm pitch Plug 28-16 AWG Screw
艾睿:
Joining multiple circuits is easy with this 1850880 PCB terminal block from Phoenix Contact. This F connector has 5 contacts that are plated with tin. It has a maximum voltage rating of 160 V. It has a female type gender. Its pitch is 3.81 mm. It has a right angle body orientation. This is a 1-row connector. 1850880 is housed in polyamide. This device has a maximum current rating of 8 A. Its wire is 16-28 AWG. It uses the screw termination method. This product is 29.44 mm long, 12.3 mm tall and 21.7 mm deep.
Verical:
Conn Terminal Block F 5 POS 3.81mm Screw ST Panel Mount 8A
Online Components:
Conn Terminal Block F 5 POS 3.81mm Screw ST Panel Mount 8A
Electro Sonic:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
