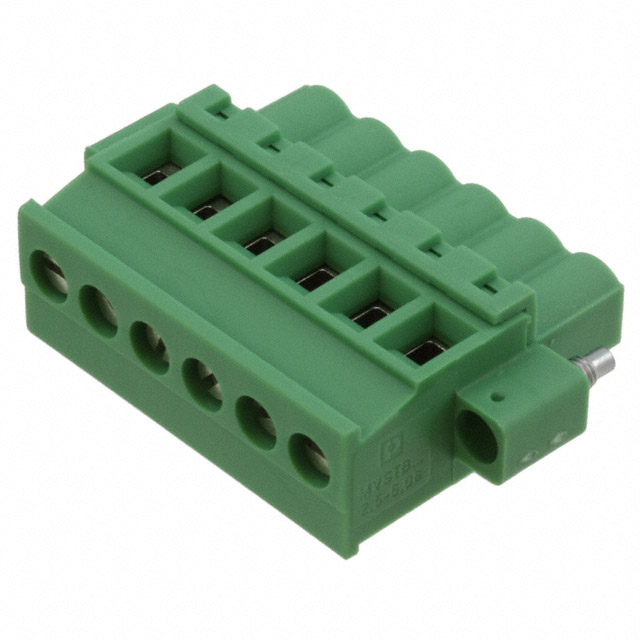

Phoenix Contact MVSTBW 系列 6路 5.08mm节距 印刷电路板接线端子块 1834945, 螺钉端接, 连接器
6 针位端子块 插头，母插口 0.200"（5.08mm） - 270° 自由悬挂
欧时:
Phoenix Contact MVSTBW 系列 6路 5.08mm节距 印刷电路板接线端子块 1834945, 螺钉端接, 连接器
得捷:
TERM BLOCK PLUG 6POS 5.08MM
贸泽:
Pluggable Terminal Blocks MVSTBW 2 5/ 6-STF-5
艾睿:
Connect test equipment together with other components by using this 1834945 PCB terminal block from Phoenix Contact. This F connector has 6 contacts that are plated with tin. It has a straight body orientation. It has a female type gender. This is a 1-row connector. Its pitch is 5.08 mm. It has a maximum voltage rating of 320 V. 1834945 is housed in polyamide. This device has a maximum current rating of 12 A. This product is 40.64 mm long, 12.6 mm tall and 26 mm deep. Its wire is 12-24 AWG. It uses the screw termination method.
Allied Electronics:
Plug Component; PCB; 12A; 320V; 6 Pos; Screw Conn; MVSTBW 2; 5/ 6-STF-5; 08
Verical:
Conn Terminal Block F 6 POS 5.08mm Screw ST Panel Mount 12A
MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 6 - pitch: 5.08 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin
Online Components:
Conn Terminal Block F 6 POS 5.08mm Screw ST Panel Mount 12A
Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
