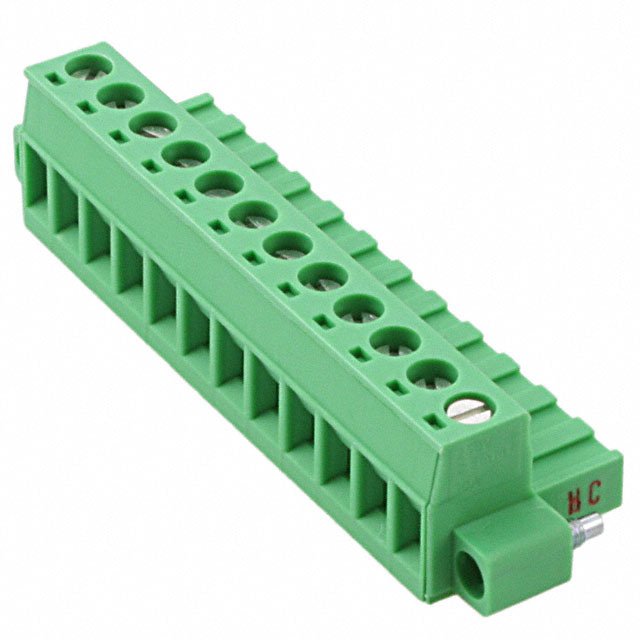

1778085

间距5.08mm 12位 插头 带锁紧螺丝 12A 320V 螺钉式 配线24-12AWG0.2-2.5mm²

12 针位端子块 插头，母插口 0.200"（5.08mm） - 180° 自由悬挂

得捷:
TERM BLOCK PLUG 12POS STR 5.08MM

贸泽:
可插拔接线端子 12 Pos 5.08mm pitch Plug 24-12 AWG Screw

艾睿:
Keep your connections strong with this 1778085 PCB terminal block from Phoenix Contact utilizing clamps and screws. This F connector has 12 contacts that are plated with tin. It has a right angle body orientation. Its pitch is 5.08 mm. It has a maximum voltage rating of 320 V. It has a female type gender. This is a 1-row connector. This device has a maximum current rating of 12 A. 1778085 is housed in polyamide. It uses the screw termination method. This product is 70.76 mm long, 15 mm tall and 18.2 mm deep. Its wire is 12-24 AWG.

Allied Electronics:
COMBICON MSTB Series 5.08mm Pitch Straight Pluggable Trm Blk, Plug w/ Screw Term

Verical:
Conn Terminal Block F 12 POS 5.08mm Screw RA Panel Mount 12A

MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 12 - pitch: 5.08 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin

Online Components:
Conn Terminal Block F 12 POS 5.08mm Screw RA Panel Mount 12A

Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
