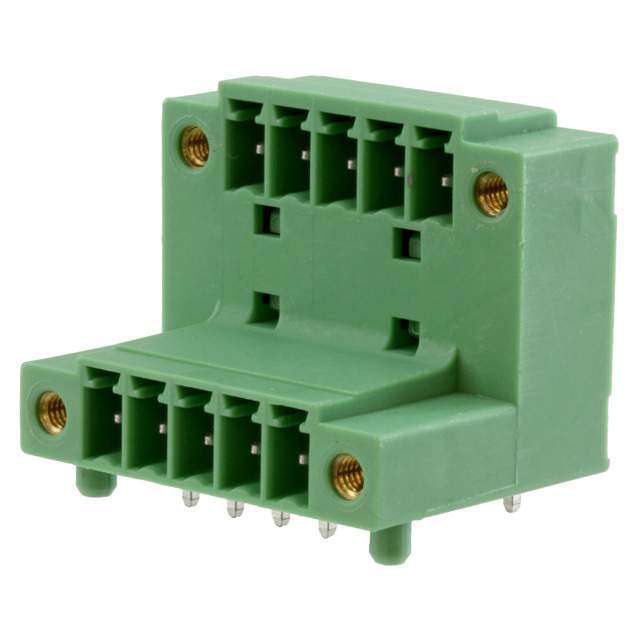

Phoenix Contact PCB 接线端子块 COMBICON MCD 系列 5路 3.81mm节距 1842940, 焊接端接, 8A
针位端子块
得捷:
TERM BLOCK HDR 10POS 3.81MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON MCD 系列 5路 3.81mm节距 1842940, 焊接端接, 8A
贸泽:
Pluggable Terminal Blocks 5 Pos 3.81mm pitch Through Hole Header
艾睿:
Phoenix Contact brings you their wire to board 1842940 header connector, an important safety tool for protecting your electronic components from accidental damage. This HDR connector has 10 contacts that are plated with tin. It has a header type gender. It has a right angle body orientation. It has a maximum voltage rating of 160 V. Its pitch is 3.81 mm. This is a 2-row connector. This device has a maximum current rating of 8 A. 1842940 is housed in green polyamide. This product is 29.44 mm long, 22.7 mm tall and 21.9 mm deep. It uses the solder termination method.
Verical:
Conn Wire to Board HDR 10 POS 3.81mm Solder RA Thru-Hole
MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 5 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.
Online Components:
Conn Wire to Board HDR 10 POS 3.81mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
