1859519

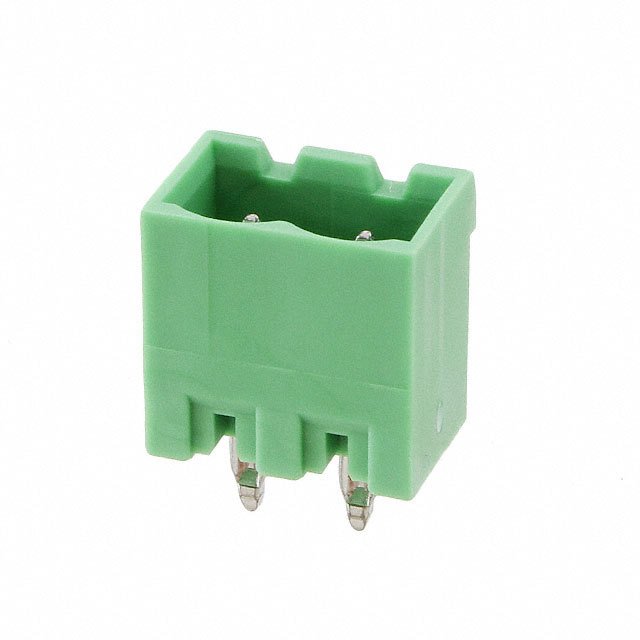

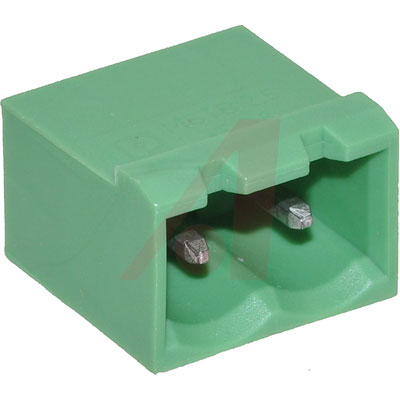

Conn Shrouded Header HDR 2POS 5.08mm Press Fit ST Thru-Hole

Plug Component, 10 A Nominal Current, 250 V Nominal Voltage, 5.08 mm Pitch

* PBT material insulation

* 1.7 mm dia. pin

* UL, cUL Recognized standards

* Polyamide Insulating Material

* Voltage: 300 V, Amps: 10 A

* Plug-In Direction Vertical to the PCB

* With Side Panels

得捷:
TERM BLOCK HDR 2POS VERT 5.08MM

贸泽:
Pluggable Terminal Blocks 2 Pos 5.08mm pitch Press In Header

艾睿:
Think of Phoenix Contact&s;s shrouded 1859519 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector has 2 contacts that are plated with tin. It has a maximum voltage rating of 320 V. It has a straight body orientation. It has a header type gender. Its pitch is 5.08 mm. This is a 1-row connector. This device has a maximum current rating of 12 A. It uses the press fit termination method. This product is 12.16 mm long, 12 mm tall and 8.6 mm deep. 1859519 is housed in green polybutylene terephthalate.

Allied Electronics:
Conn; TermBlk; PCB; Header; SnglLvl; Sldr; 2Pole; 5.08mmPitch; COMBICON

Verical:
Conn Shrouded Header HDR 2 POS 5.08mm Press Fit ST Thru-Hole

MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 2 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Press-in technology - pin layout: Linear pinning - solder pin [

Online Components:
Conn Shrouded Header HDR 2 POS 5.08mm Press Fit ST Thru-Hole

Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
