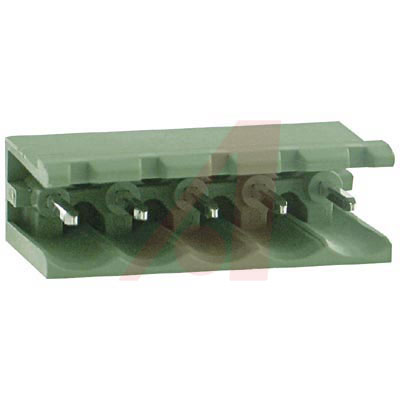

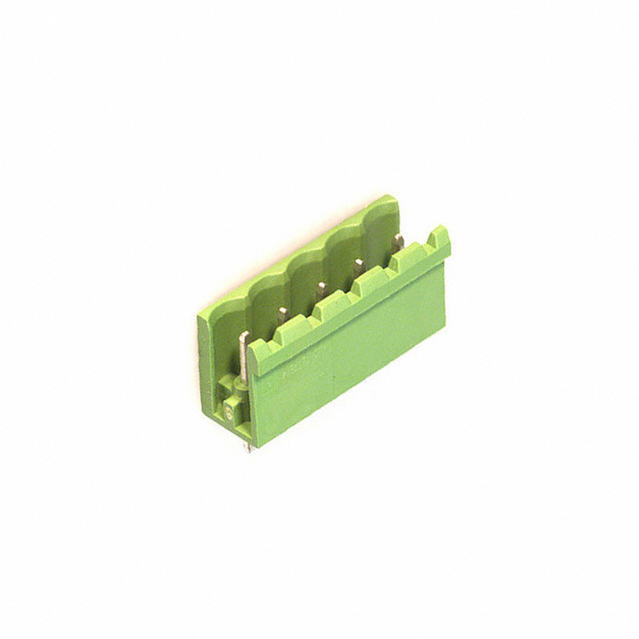

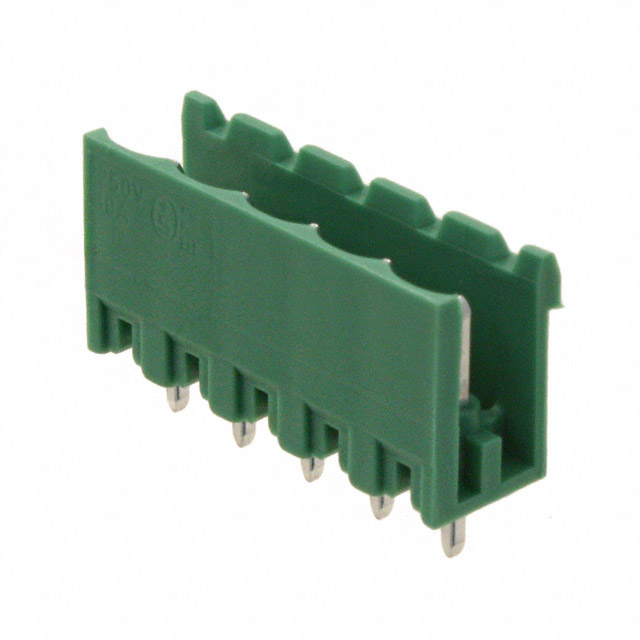

1753495

间距5mm 5位 母座 12A 320V 直插 无封边

5 针位端子块 接头，公引脚，带罩（2 面） 0.197"（5.00mm） 垂直 - 通孔

得捷:
TERM BLOCK HDR 5POS VERT 5MM

贸泽:
Pluggable Terminal Blocks 5 Pos 5mm pitch Through Hole Header

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this shrouded 1753495 header connector from Phoenix Contact. This HDR connector has 5 contacts that are plated with tin. It has a straight body orientation. It has a maximum voltage rating of 320 V. Its pitch is 5 mm. This is a 1-row connector. It has a header type gender. This device has a maximum current rating of 12 A. This product is 25 mm long, 12 mm tall and 8.6 mm deep. 1753495 is housed in green polybutylene terephthalate. It uses the solder termination method.

Allied Electronics:
MSTBV Series, 5mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 12A

Verical:
Conn Shrouded Header 2 Sides HDR 5 POS 5mm Solder ST Thru-Hole

MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 5 - pitch: 5 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.9

Online Components:
Conn Shrouded Header HDR 5 POS 5mm Solder ST Thru-Hole

Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
