1933286

Conn; Term Blk; Header; 12; 5mm; Black; 10A Plug dependent; 400V; Solder

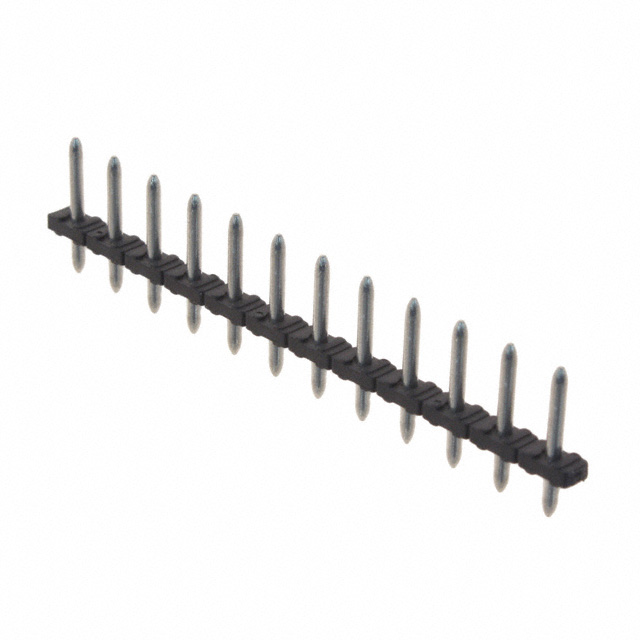

Pin Strip Male Connector, 10 A Max. Nominal Current, 5 mm Pitch

得捷:
TERM BLOCK HDR 12POS VERT 5MM

艾睿:
Phoenix Contact&s;s unshrouded 1933286 header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This M connector has 12 contacts that are plated with tin. Its pitch is 5 mm. It has a male type gender. It has a maximum voltage rating of 320 V. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 12 A. 1933286 is housed in black polyamide. This product is 60 mm long, 9.5 mm tall and 2.8 mm deep. It uses the solder termination method.

Allied Electronics:
Conn; Term Blk; Header; 12; 5 mm; Black; 10 A Plug dependent; 400 V; Solder

Verical:
Conn Unshrouded Header M 12 POS 5mm Solder ST Thru-Hole

MASTER:
Pin strip - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 1.5 mm² - number of positions: 12 - pitch: 5 mm - color: black - contact surface: Tin - mounting: THR soldering - pin layout: Linear pinning - solder pin [P]: 3.5 mm

Online Components:
Conn Unshrouded Header M 12 POS 5mm Solder ST Thru-Hole

Electro Sonic:
Pin strip - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 1.5 mm² - ...
