1766673

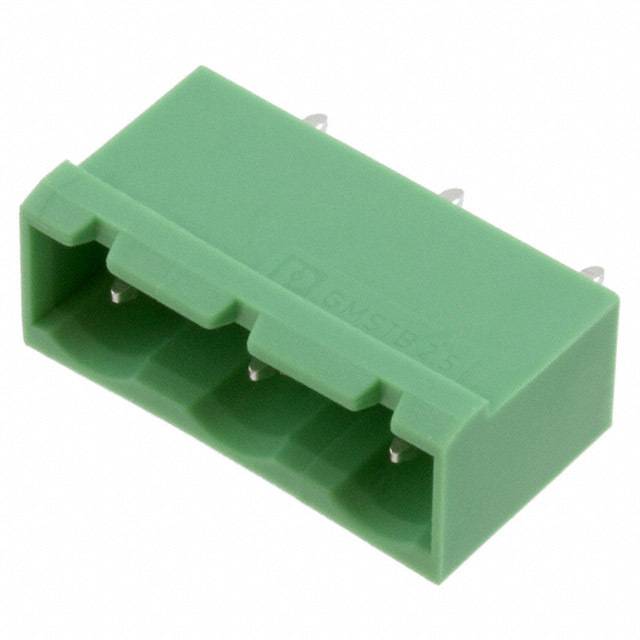

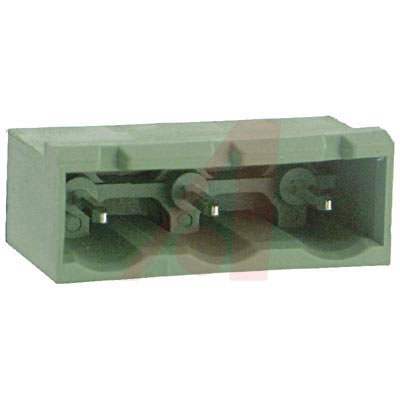

可插拔接线端子 3 Pos 7.5mm pitch Through Hole Header

3 针位端子块 接头，公引脚，带罩（4 面） 0.295"（7.50mm） 垂直 - 通孔

得捷:
TERM BLOCK HDR 3POS VERT 7.5MM

欧时:
GMSTBVA 2,5/ 3-G

贸泽:
可插拔接线端子 3 Pos 7.5mm pitch Through Hole Header

艾睿:
Use this shrouded 1766673 header connector from Phoenix Contact where IDC ribbon cables are used. This HDR connector has 3 contacts that are plated with tin. It has a header type gender. It has a maximum voltage rating of 630 V. Its pitch is 7.5 mm. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 12 A. This product is 22.5 mm long, 12 mm tall and 8.6 mm deep. 1766673 is housed in green polyamide. It uses the solder termination method.

Allied Electronics:
Conn; TermBlk; PCB; Header; SnglLvl; Sldr; 3Pole; 7.5mmPitch; COMBICON

Verical:
Conn Shrouded Header 4 Sides HDR 3 POS 7.5mm Solder ST Thru-Hole

MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - number of positions: 3 - pitch: 7.5 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.

Online Components:
Conn Shrouded Header HDR 3 POS 7.5mm Solder ST Thru-Hole

Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - ...
