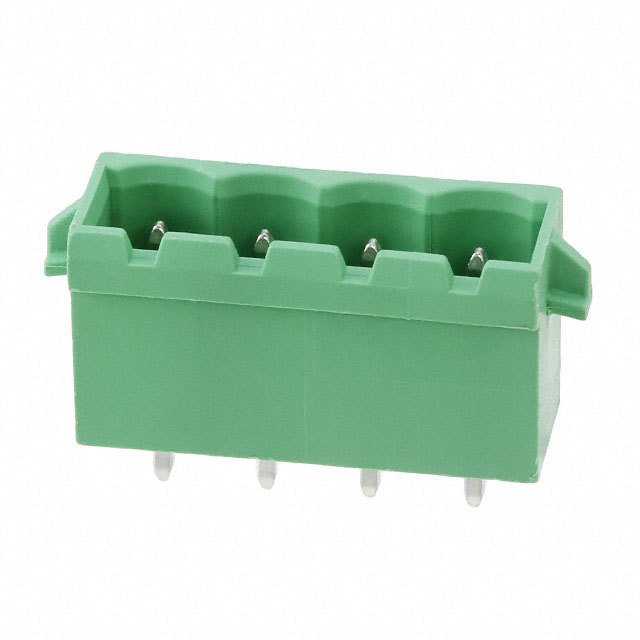

Phoenix Contact PCB 接线端子块 COMBICON MSTBVA 系列 4路 5.08mm节距 1936034, 焊接端接, 12A
针位端子块
得捷:
TERM BLOCK HDR 4POS VERT 5.08MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON MSTBVA 系列 4路 5.08mm节距 1936034, 焊接端接, 12A
立创商城:
5.08mm 排数:1 每排P数:4
贸泽:
可插拔接线端子 4 Pos 5.08mm pitch Through Hole Header
艾睿:
As an added safety precaution, the shrouded 1936034 header connector from Phoenix Contact will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector has 4 contacts that are plated with tin. This is a 1-row connector. It has a header type gender. Its pitch is 5.08 mm. It has a maximum voltage rating of 320 V. It has a straight body orientation. This device has a maximum current rating of 12 A. It uses the solder termination method. 1936034 is housed in green polybutylene terephthalate. This product is 26.14 mm long, 12 mm tall and 8.6 mm deep.
Verical:
Conn Shrouded Header HDR 4 POS 5.08mm Solder ST Top Entry Thru-Hole
MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 4 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3
Online Components:
Conn Shrouded Header HDR 4 POS 5.08mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
