Phoenix Contact MINI COMBICON MC 3.5mm 印刷电路板端子块管座MINI COMBICON MC 1,5 系列 3.5mm 节距插入式单电平直角印刷电路板通孔安装有罩端子块管座。 部件号前缀为 1843 和 1763 的库存号具有螺纹法兰 部件号前缀为 1817 的库存号具有螺纹法兰和锁定及释放机制### Phoenix Contact MINI COMBICON 3.5mm 两件式端子块
Contact MINI COMBICON MC 和 MCV 3.5mm 印刷电路板端子块管座
MINI COMBICON MC 和 MCV 系列 3.5mm 节距插入式单级直角印刷电路板通孔安装有罩端子块管座。这些 MINI COMBICON MC 端子块提供螺纹法兰和锁定及释放机制
得捷:
TERM BLOCK HDR 9POS 90DEG 3.5MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON MC 系列 9路 3.5mm节距 1843868, 焊接端接, 8A
贸泽:
可插拔接线端子 9 Pos 3.5mm pitch Through Hole Header
艾睿:

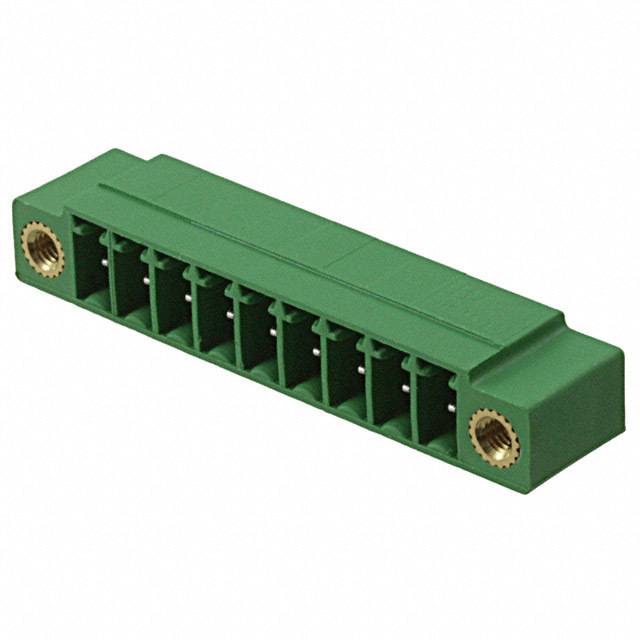

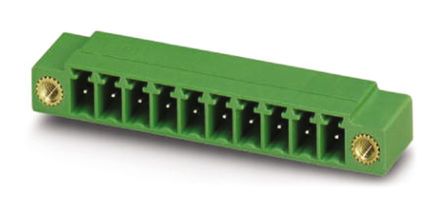

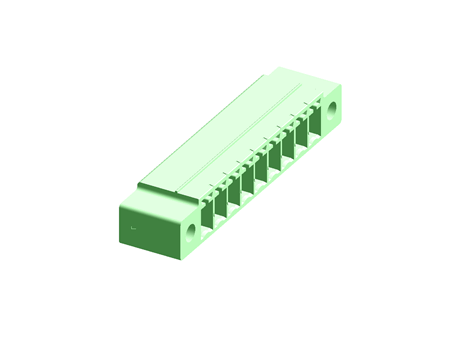

Reduce the possibility of accidentally shorting pins when using a printed circuit board with this wire to board 1843868 header connector from Phoenix Contact. This HDR connector has 9 contacts that are plated with tin. It has a maximum voltage rating of 160 V. This is a 1-row connector. Its pitch is 3.5 mm. It has a header type gender. It has a right angle body orientation. This device has a maximum current rating of 8 A. 1843868 is housed in green polybutylene terephthalate. It uses the solder termination method. This product is 32.9 mm long, 7.25 mm tall and 9.2 mm deep.
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
