Conn Shrouded Header HDR 6POS 7.5mm Solder ST Thru-Hole
Header, PBT Insulation Material, Solder Type Mounting, 12 A Nominal Current Rating, 7.5 mm Pitch
* Polyamide Insulating Material
* Voltage: 300, Amps: 10
* Header with Side Panels
得捷:
TERM BLOCK HDR 6POS VERT 7.5MM
艾睿:

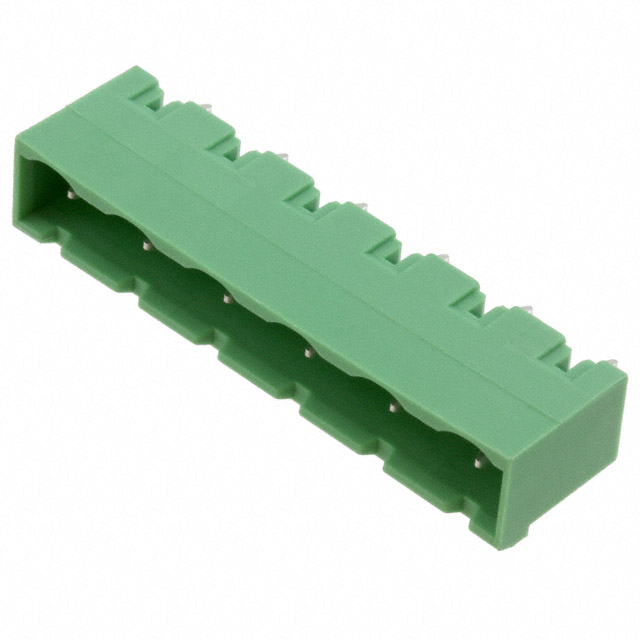

Think of Phoenix Contact&s;s shrouded 1766709 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector has 6 contacts that are plated with tin. It has a straight body orientation. This is a 1-row connector. It has a header type gender. Its pitch is 7.5 mm. It has a maximum voltage rating of 400 V. This device has a maximum current rating of 12 A. It uses the solder termination method. This product is 45 mm long, 12 mm tall and 8.6 mm deep. 1766709 is housed in green polyamide.
Allied Electronics:
Conn; TermBlk; PCB; Header; SnglLvl; Sldr; 6Pole; 7.5mmPitch; COMBICON
MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - number of positions: 6 - pitch: 7.5 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.
Online Components:
Conn Shrouded Header HDR 6 POS 7.5mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - ...
