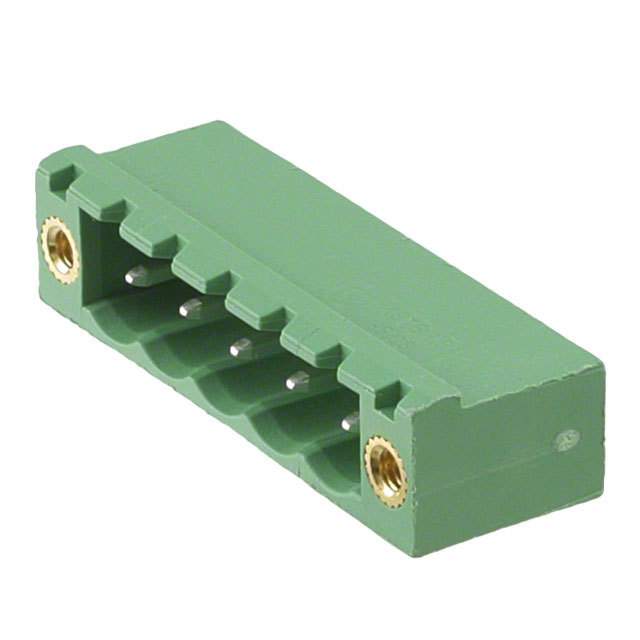

Phoenix Contact PCB 接线端子块 COMBICON MSTB 系列 5路 5.08mm节距 1924114, 焊接端接, 16A
Conn Shrouded Header HDR 5 POS 5.08mm Solder RA Thru-Hole
得捷:
TERM BLOCK HDR 5POS 90DEG 5.08MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON MSTB 系列 5路 5.08mm节距 1924114, 焊接端接, 16A
艾睿:
Safety is an important concern when designing electronic devices. Phoenix Contact&s;s shrouded 1924114 header connector helps protect your equipment from accidental shortages. This HDR connector has 5 contacts that are plated with tin. It has a header type gender. This is a 1-row connector. It has a maximum voltage rating of 320 V. Its pitch is 5.08 mm. It has a right angle body orientation. This device has a maximum current rating of 16 A. 1924114 is housed in green polyamide. It uses the solder termination method. This product is 35.56 mm long, 8.6 mm tall and 12 mm deep.
Verical:
Conn Shrouded Header HDR 5 POS 5.08mm Solder RA Thru-Hole
MASTER:
PCB headers - nominal current: 16 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 5 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3
Online Components:
Conn Shrouded Header HDR 5 POS 5.08mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 16 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
