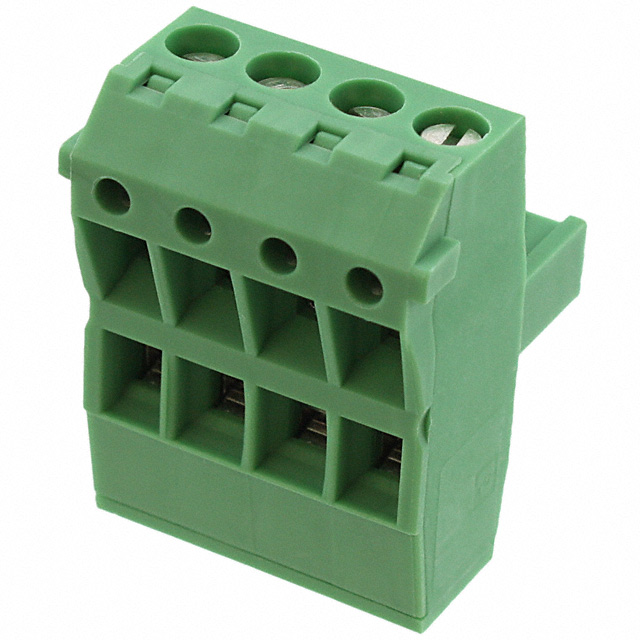

Phoenix Contact COMBICON TMSTB 系列 5.08mm 节距 4 路 母 绿色 插头 1853036, 螺钉端接
Conn Terminal Block F 8 POS 5.08mm Screw RA Cable Mount 12A
得捷:
TERM BLOCK PLUG 4POS STR 5.08MM
欧时:
Phoenix Contact COMBICON TMSTB 系列 5.08mm 节距 4 路 母 绿色 插头 1853036, 螺钉端接
贸泽:
Pluggable Terminal Blocks 4 Pos 5.08mm pitch Plug 24-12 AWG Screw
MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 4 - pitch: 5.08 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin - The plug allo
Online Components:
Conn Terminal Block F 8 POS 5.08mm Screw RA Cable Mount 12A
Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
触点数 4
线规 12AWG ~ 30AWG
触点电镀 Tin
额定电流 12 A
排数 2
电路数 8
易燃性等级 UL 94 V-0
针脚数 4
安装角度 180 °
额定电流Max 12 A
额定电压Max 320 V
额定电压 630 V
安装方式 Screw
引脚间距 5.08 mm
长度 31.3 mm
宽度 21.5 mm
高度 28.9 mm
引脚间距 5.08 mm
外壳颜色 Green
颜色 Green
外壳材质 Nylon
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536694040
