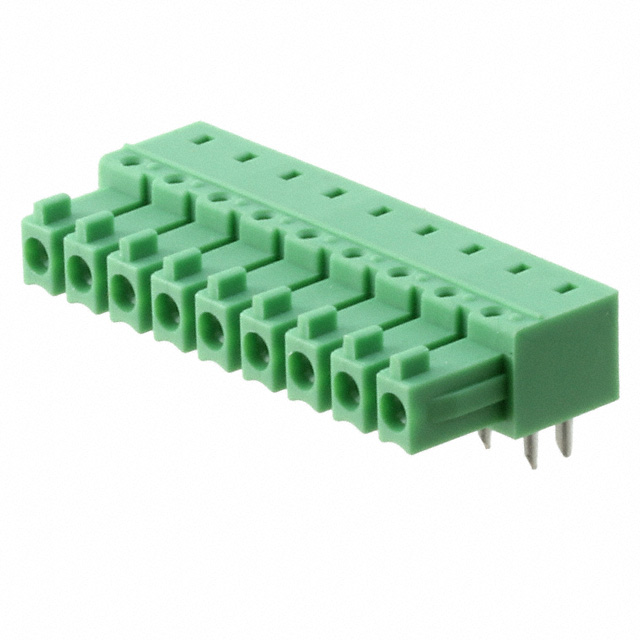

Phoenix Contact PCB 接线端子块 COMBICON IMC 系列 9路 3.81mm节距 1862645, 焊接端接, 8A
9 针位端子块 接头，母型插口 0.150"（3.81mm） 90°，直角 - 通孔
得捷:
TERM BLOCK HDR 9POS 90DEG 3.81MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON IMC 系列 9路 3.81mm节距 1862645, 焊接端接, 8A
艾睿:
This wire to board 1862645 header connector from Phoenix Contact is used for jumper posts to support physical configuration options on printed circuit boards. This F connector has 9 contacts that are plated with tin. Its pitch is 3.81 mm. It has a female type gender. It has a maximum voltage rating of 160 V. This is a 1-row connector. It has a right angle body orientation. This device has a maximum current rating of 8 A. 1862645 is housed in green polyamide. It uses the solder termination method. This product is 35.08 mm long, 6.85 mm tall and 14.5 mm deep.
MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 9 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.
Online Components:
Conn Wire to Board F 9 POS 3.81mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
