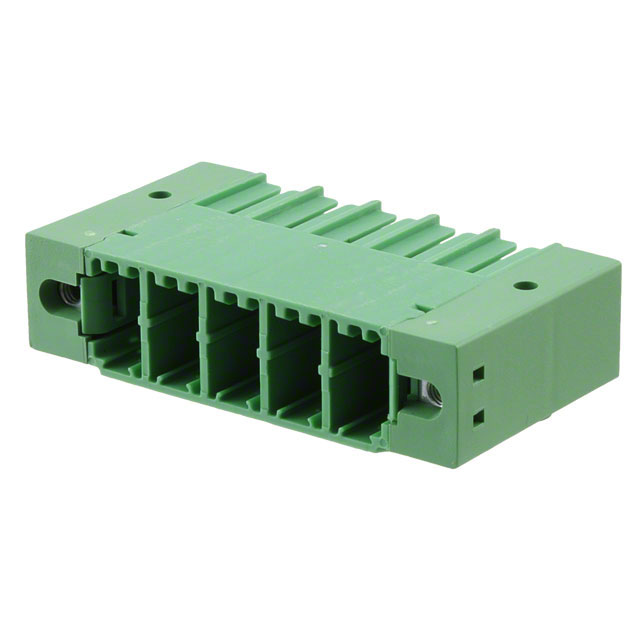

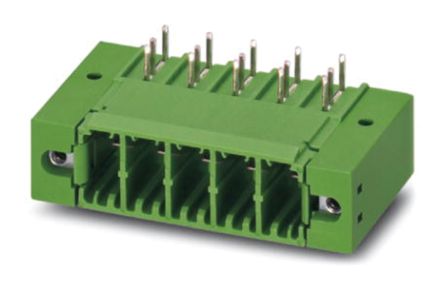

Phoenix Contact PCB 接线端子块 COMBICON PC 系列 5路 7.62mm节距 1721041, 焊接端接, 41A
Conn Wire to Board HDR 5 POS 7.62mm Solder RA Thru-Hole
得捷:
TERM BLOCK HDR 5POS 90DEG 7.62MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON PC 系列 5路 7.62mm节距 1721041, 焊接端接, 41A
贸泽:
可插拔接线端子 5 Pos 7.62mm pitch Through Hole Header
艾睿:
Mount this wire to board 1721041 header connector from Phoenix Contact on a jumper post on your PCB to support physical configuration options. This HDR connector has 5 contacts that are plated with tin. It has a header type gender. Its pitch is 7.62 mm. It has a right angle body orientation. This is a 1-row connector. It has a maximum voltage rating of 630 V. This device has a maximum current rating of 41 A. It uses the solder termination method. This product is 54.2 mm long, 13.54 mm tall and 29.25 mm deep. 1721041 is housed in green polybutylene terephthalate.
Verical:
Conn Wire to Board HDR 5 POS 7.62mm Solder RA Thru-Hole
MASTER:
PCB headers - nominal current: 41 A - rated voltage III/2: 630 V - nominal cross section: 6 mm² - number of positions: 5 - pitch: 7.62 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 4.2
Online Components:
Conn Wire to Board HDR 5 POS 7.62mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 41 A - rated voltage III/2: 630 V - nominal cross section: 6 mm² - ...
