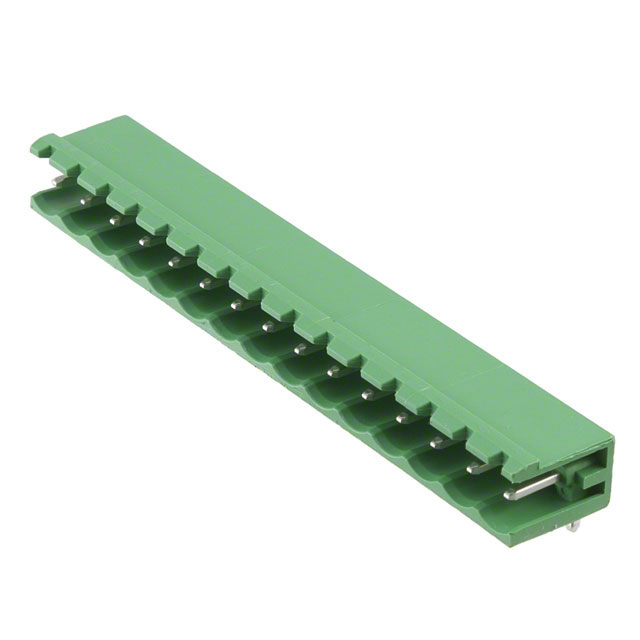

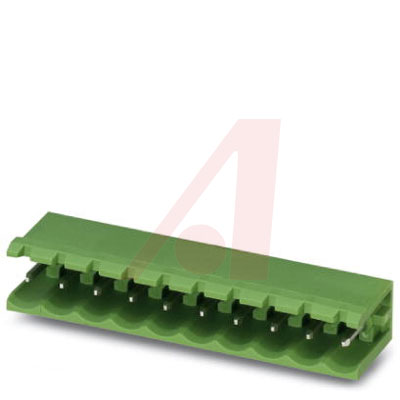

1754711

间距5mm 16位 母座 12A 320V 弯插 无封边

16 针位端子块 接头，公引脚，带罩（2 面） 0.197"（5.00mm） 90°，直角 - 通孔

得捷:
TERM BLOCK HDR 16POS 90DEG 5MM

贸泽:
Pluggable Terminal Blocks 16 Pos 5mm pitch Through Hole Header

艾睿:
Support physical configuration options for jumper posts by mounting this shrouded 1754711 header connector from Phoenix Contact. This HDR connector has 16 contacts that are plated with tin. This is a 1-row connector. It has a maximum voltage rating of 320 V. It has a right angle body orientation. It has a header type gender. Its pitch is 5 mm. This device has a maximum current rating of 12 A. This product is 80 mm long, 8.6 mm tall and 12 mm deep. It uses the solder termination method. 1754711 is housed in green polybutylene terephthalate.

Allied Electronics:
MSTB Series, 5mm Pitch 16 Way 1 Row Right Angle PCB Trm Blk, Solder Term, 12A

Verical:
Conn Shrouded Header 2 Sides HDR 16 POS 5mm Solder RA Thru-Hole

MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 16 - pitch: 5 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.5

Online Components:
Conn Shrouded Header HDR 16 POS 5mm Solder RA Thru-Hole

Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
