1777824

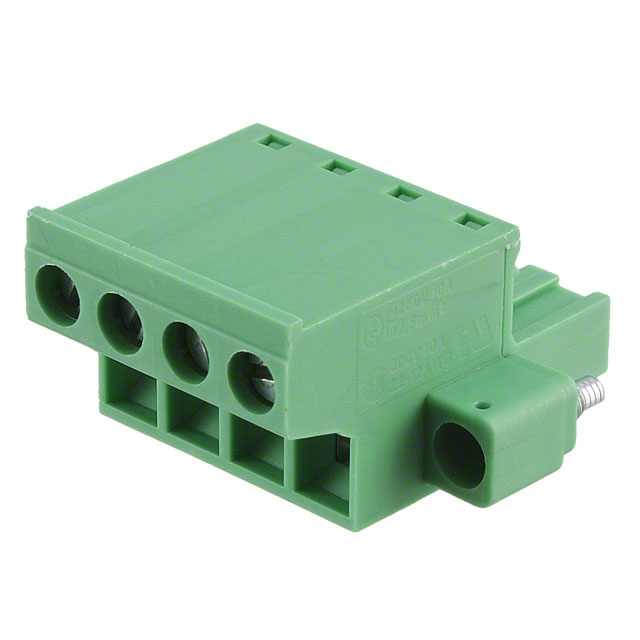

Phoenix Contact COMBICON FRONT-MSTB 系列 5.08mm 节距 4 路 母 绿色 插头 1777824, 螺钉端接

4 针位端子块 插头，母插口 0.200"（5.08mm） 180° 自由悬挂

得捷:
TERM BLOCK PLUG 4POS STR 5.08MM

欧时:
FRONT-MSTB 2,5/ 4-STF-5,08

贸泽:
可插拔接线端子 4 Pos 5.08mm pitch Plug 24-12 AWG Screw

艾睿:
Never worry about wires becoming undone by implementing this 1777824 PCB terminal block developed by Phoenix Contact. This F connector has 4 contacts that are plated with tin. It has a maximum voltage rating of 320 V. Its pitch is 5.08 mm. It has a straight body orientation. It has a female type gender. This is a 1-row connector. 1777824 is housed in polyamide. This device has a maximum current rating of 12 A. It uses the screw termination method. Its wire is 12-24 AWG. This product is 30.12 mm long, 15 mm tall and 27.5 mm deep.

Verical:
Conn Terminal Block F 4 POS 5.08mm Screw ST Panel Mount 12A

MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 4 - pitch: 5.08 mm - connection method: Front screw connection - color: green - contact surface: Tin

Online Components:
Conn Terminal Block F 4 POS 5.08mm Screw ST Panel Mount 12A

Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
