1851261

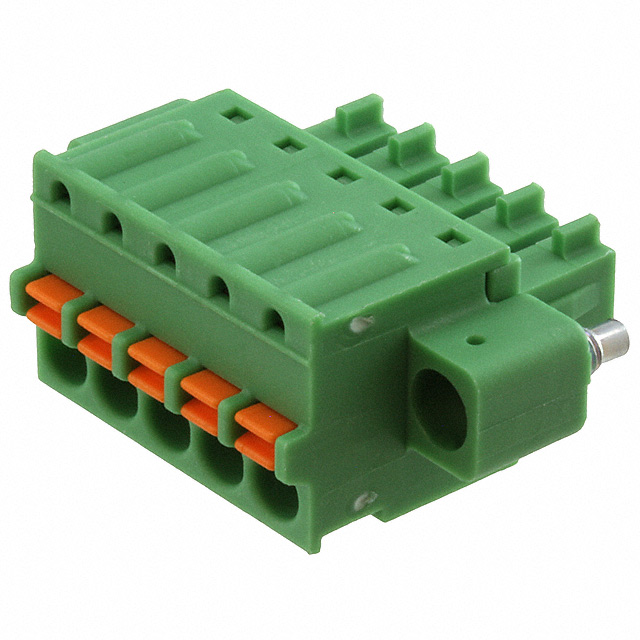

Phoenix Contact MINI COMBICON FK-MCP 系列 3.81mm 节距 5 路 母 绿色 插头 1851261, 弹簧笼端接

Conn Spring Cage F 5 POS 3.81mm ST Panel Mount 8A

欧时:
FK-MCP 1,5/ 5-STF-3,81

得捷:
TERM BLOCK PLUG 5POS STR 3.81MM

艾睿:
Joining multiple circuits is easy with this spring cage 1851261 PCB terminal block from Phoenix Contact. This F connector has 5 contacts that are plated with tin. Its pitch is 3.81 mm. It has a female type gender. This is a 1-row connector. It has a maximum voltage rating of 160 V. It has a straight body orientation. This device has a maximum current rating of 8 A. 1851261 is housed in polyamide. This product is 29.44 mm long, 12.4 mm tall and 20.8 mm deep. Its wire is 16-26 AWG.

Verical:
Conn Spring Cage F 5 POS 3.81mm ST Panel Mount 8A

MASTER:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 5 - pitch: 3.81 mm - connection method: Push-in spring connection - color: green - contact surface: Tin

Online Components:
Conn Spring Cage F 5 POS 3.81mm ST Panel Mount 8A

Electro Sonic:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
