Header; 12A; 320V; 24POS.; 5.08mm Pitch; Green; MSTB 2, 5/24G-5, 08
24 针位端子块 接头，公引脚，带罩（2 面） 0.200"（5.08mm） 90°，直角 - 通孔
得捷:
TERM BLOCK HDR 24POS 5.08MM
艾睿:

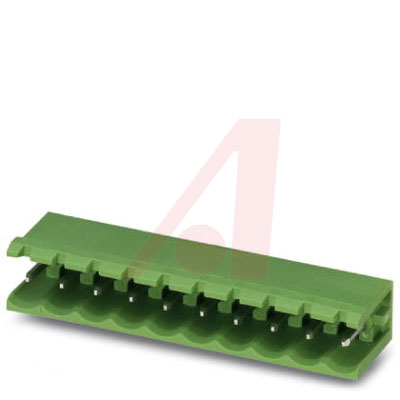

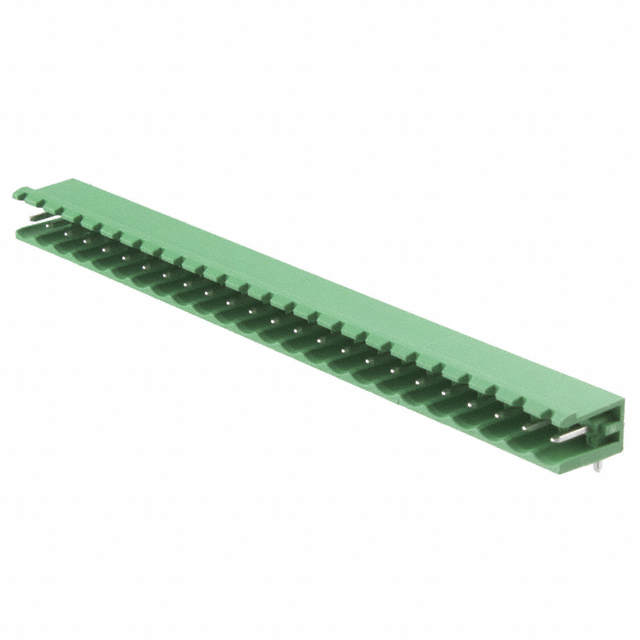

Protect your printed circuit boards from accidental damages with Phoenix Contact&s;s shrouded 1759237 header connector. This HDR connector has 24 contacts that are plated with tin. It has a right angle body orientation. It has a maximum voltage rating of 320 V. This is a 1-row connector. Its pitch is 5.08 mm. It has a header type gender. This device has a maximum current rating of 12 A. 1759237 is housed in green polybutylene terephthalate. It uses the solder termination method. This product is 121.92 mm long, 8.6 mm tall and 12 mm deep.
Allied Electronics:
Header; 12A; 320V; 24 Pos.; 5.08mm Pitch; Green; MSTB 2, 5/24-G-5, 08
MASTER:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 24 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]:
Online Components:
Conn Shrouded Header HDR 24 POS 5.08mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
