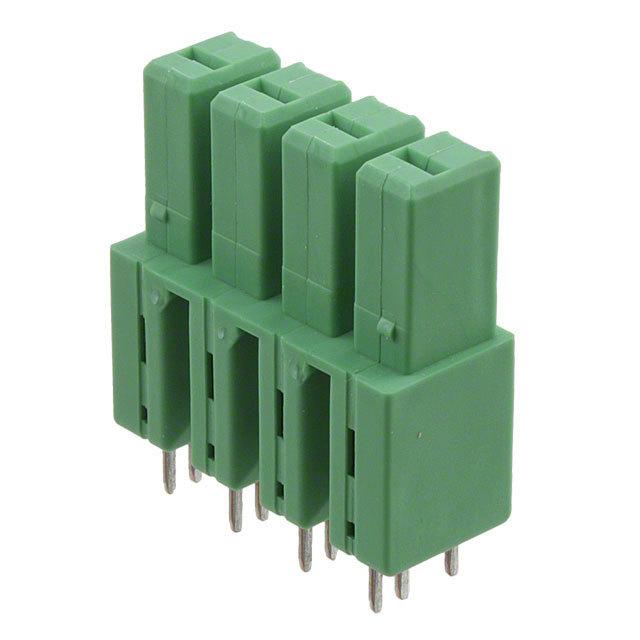

4 针位端子块 接头，母型插口 0.300"（7.62mm） 垂直 通孔
得捷:
TERM BLOCK HDR 4POS VERT 7.62MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON IPCV 系列 4路 7.62mm节距 1708844, 焊接端接, 41A
艾睿:
Mount this wire to board 1708844 header connector from Phoenix Contact on a jumper post on your PCB to support physical configuration options. This F connector has 4 contacts that are plated with tin. It has a maximum voltage rating of 630 V. It has a straight body orientation. It has a female type gender. This is a 1-row connector. Its pitch is 7.62 mm. This device has a maximum current rating of 41 A. 1708844 is housed in green polyamide. This product is 30.48 mm long, 30.1 mm tall and 12.8 mm deep. It uses the solder termination method.
Verical:
Conn Wire to Board F 4 POS 7.62mm Solder ST Thru-Hole
MASTER:
PCB headers - nominal current: 41 A - rated voltage III/2: 630 V - nominal cross section: 6 mm² - number of positions: 4 - pitch: 7.62 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 5 m
Online Components:
Conn Wire to Board F 4 POS 7.62mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 41 A - rated voltage III/2: 630 V - nominal cross section: 6 mm² - ...
