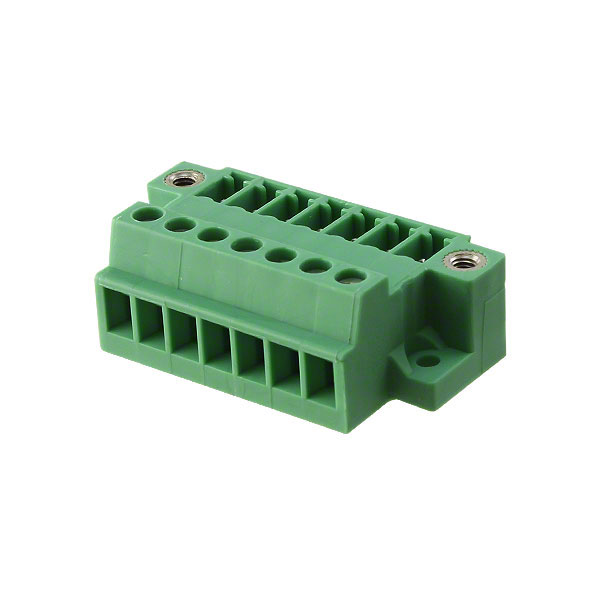

Phoenix Contact MCVU 系列 7路 3.81mm节距 印刷电路板管座 1833072, 螺钉端接
Conn Terminal Block M 7 POS 3.81mm Screw ST Panel Mount 8A
得捷:
TERM BLOCK RCPT 7POS 3.81MM
欧时:
Phoenix Contact MCVU 系列 7路 3.81mm节距 印刷电路板管座 1833072, 螺钉端接
贸泽:
可插拔接线端子 7 Pos 3.81mm pitch Box Header
艾睿:
Know that you will have strong connections between circuits when you use Phoenix Contact&s;s 1833072 PCB terminal block. This M connector has 7 contacts that are plated with tin. Its pitch is 3.81 mm. It has a maximum voltage rating of 160 V. It has a male type gender. This is a 1-row connector. It has a straight body orientation. This device has a maximum current rating of 8 A. 1833072 is housed in polyamide. Its wire is 16-28 AWG. This product is 37.06 mm long, 12.5 mm tall and 20.3 mm deep. It uses the screw termination method.
MASTER:
Direct plug-in block - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 7 - pitch: 3.81 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin - mountin
Online Components:
Conn Terminal Block M 7 POS 3.81mm Screw ST Panel Mount 8A
Electro Sonic:
Direct plug-in block - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² ...
