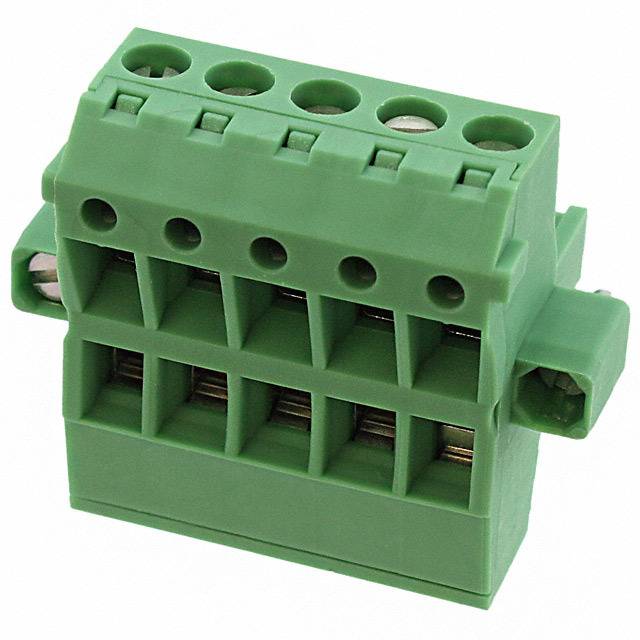

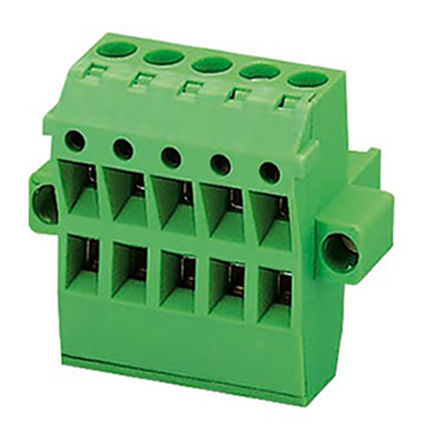

Phoenix Contact COMBICON TMSTB 系列 5.08mm 节距 5 路 母 绿色 插头 1853133, 螺钉端接
5 针位端子块 插头，母插口 0.200"（5.08mm） - 180° 自由悬挂
得捷:
TERM BLOCK PLUG 5POS STR 5.08MM
贸泽:
Pluggable Terminal Blocks 5 Pos 5.08mm pitch Plug 24-12 AWG Screw
艾睿:
Connect test equipment together with other components by using this 1853133 PCB terminal block from Phoenix Contact. This F connector has 10 contacts that are plated with tin. It has a female type gender. It has a right angle body orientation. Its pitch is 5.08 mm. This is a 2-row connector. It has a maximum voltage rating of 320 V. This device has a maximum current rating of 12 A. 1853133 is housed in polyamide. Its wire is 12-24 AWG. This product is 36.6 mm long, 28.9 mm tall and 21.5 mm deep. It uses the screw termination method.
Verical:
Conn Terminal Block F 10 POS 5.08mm Screw RA Panel Mount 12A
MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 5 - pitch: 5.08 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin - The plug allo
Online Components:
Conn Terminal Block F 10 POS 5.08mm Screw RA Panel Mount 12A
Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
