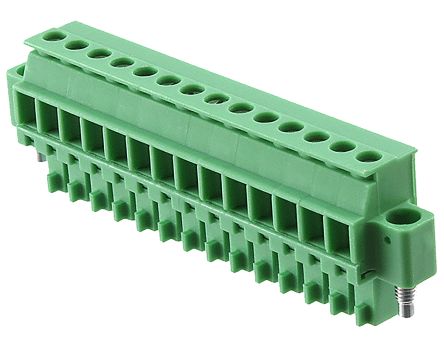

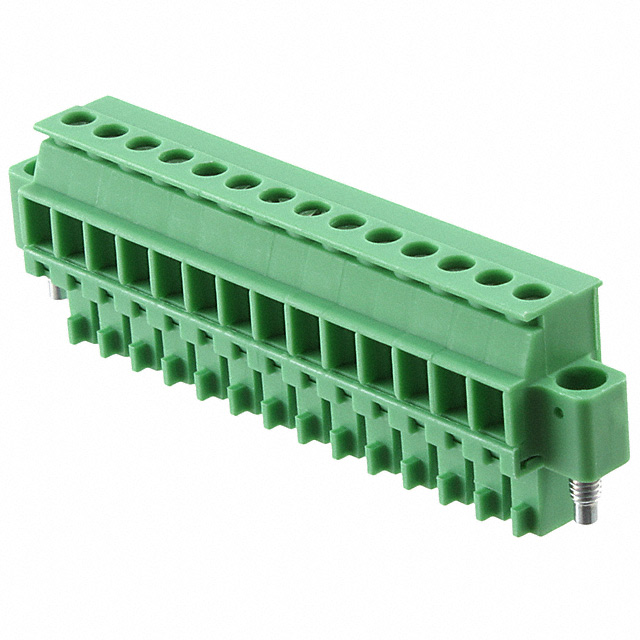

Phoenix Contact MINI COMBICON MCVR 系列 3.81mm 节距 14 路 母 绿色 插头 1828469, 螺钉端接
14 针位端子块 插头，母插口 0.150"（3.81mm） - 90° 自由悬挂
得捷:
TERM BLOCK PLUG 14POS 3.81MM
欧时:
Phoenix Contact MINI COMBICON MCVR 系列 3.81mm 节距 14 路 母 绿色 插头 1828469, 螺钉端接
艾睿:
Never worry about wires becoming undone by implementing this 1828469 PCB terminal block developed by Phoenix Contact. This F connector has 14 contacts that are plated with tin. It has a female type gender. It has a straight body orientation. It has a maximum voltage rating of 160 V. This is a 1-row connector. Its pitch is 3.81 mm. 1828469 is housed in polyamide. This device has a maximum current rating of 8 A. This product is 63.73 mm long, 19.1 mm tall and 10.4 mm deep. Its wire is 16-28 AWG. It uses the screw termination method.
Electro Sonic:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
