1766903

Phoenix Contact CLASSIC COMBICON GMSTB 7.5mm 端子块插头连接器专业系列的 Phoenix Contact GMSTB 系列线对板 7.5 mm 节距印刷电路板端子块7.5 mm 节距 线到线 焊接连接 提供各种位置 ### Phoenix Contact COMBICON 7.5mm 两件式端子块

Contact CLASSIC COMBICON GMSTB 7.5mm 端子块插头

专业系列的 Phoenix Contact GMSTB 系列线对板 7.5 mm 节距印刷电路板端子块

7.5 mm 节距

线到线

焊接连接

提供各种位置

### Phoenix Contact COMBICON 7.5mm 两件式端子块

得捷:
TERM BLOCK PLUG 4POS STR 7.5MM

欧时:
GMSTB 2,5/4-ST 7.5MM 4 way plug

艾睿:

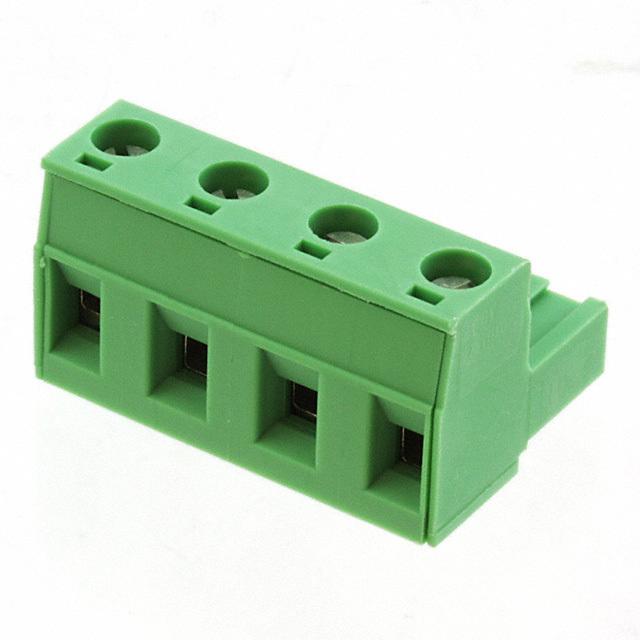

This 1766903 PCB terminal block manufactured from Phoenix Contact will bridge different sections of wires together. This F connector has 4 contacts that are plated with tin. Its pitch is 7.5 mm. This is a 1-row connector. It has a maximum voltage rating of 630 V. It has a female type gender. It has a right angle body orientation. This device has a maximum current rating of 12 A. 1766903 is housed in polyamide. This product is 28 mm long, 15 mm tall and 18.2 mm deep. It uses the screw termination method. Its wire is 12-24 AWG.

Allied Electronics:
Conn; Term Blk; Plug; Screw; 4; 7.5 mm; 30-12 AWG; 10 A; 300 V; PA

Verical:
Conn Terminal Block F 4 POS 7.5mm Screw RA Cable Mount 12A

MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - number of positions: 4 - pitch: 7.5 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin

Online Components:
Conn Terminal Block F 4 POS 7.5mm Screw RA Cable Mount 12A

Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - ...
