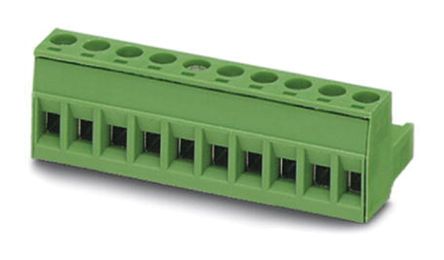

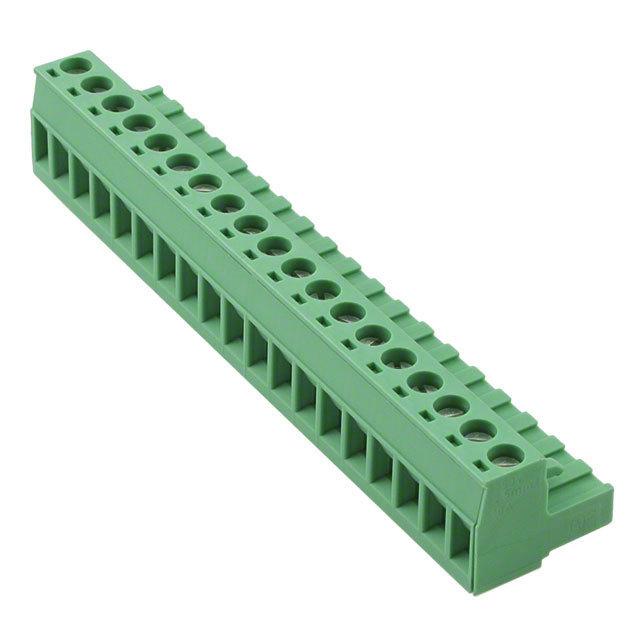

Phoenix Contact COMBICON MSTB 系列 5mm 节距 19 路 母 绿色 插头 1754782, 螺钉端接
Conn Terminal Block F 19 POS 5mm Screw RA Cable Mount 12A
得捷:
TERM BLOCK PLUG 19POS STR 5MM
欧时:
Phoenix Contact COMBICON MSTB 系列 5mm 节距 19 路 母 绿色 插头 1754782, 螺钉端接
艾睿:
Join your electrical circuits and ensure strong connections with this 1754782 PCB terminal block from Phoenix Contact. This F connector has 19 contacts that are plated with tin. It has a right angle body orientation. It has a maximum voltage rating of 320 V. Its pitch is 5 mm. This is a 1-row connector. It has a female type gender. 1754782 is housed in polyamide. This device has a maximum current rating of 12 A. It uses the screw termination method. This product is 95 mm long, 15 mm tall and 18.2 mm deep. Its wire is 12-24 AWG.
Verical:
Conn Terminal Block F 19 POS 5mm Screw RA Cable Mount 12A
MASTER:
Conn Terminal Block F 19 POS 5mm Screw RA Cable Mount 12A
Online Components:
Conn Terminal Block F 19 POS 5mm Screw RA Cable Mount 12A
Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
