1777811

Phoenix Contact COMBICON FRONT-MSTB 系列 5.08mm 节距 3 路 母 绿色 插头 1777811, 螺钉端接

Conn Terminal Block F 3 POS 5.08mm Screw RA Cable Mount 12A

得捷:
TERM BLOCK PLUG 3POS STR 5.08MM

欧时:
FRONT-MSTB 2,5/ 3-STF-5,08

贸泽:
可插拔接线端子 3 Pos 5.08mm pitch Plug 24-12 AWG Screw

艾睿:

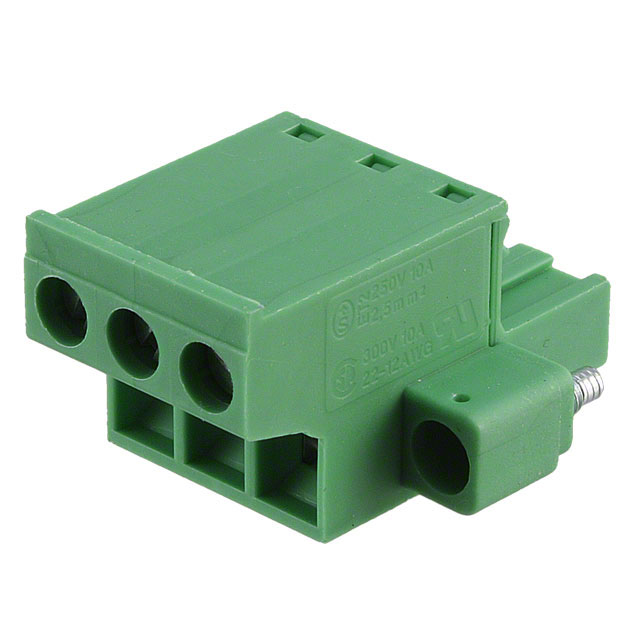

Connecting one or more circuits together, this 1777811 PCB terminal block from Phoenix Contact is a must-have! This F connector has 3 contacts that are plated with tin. It has a right angle body orientation. This is a 1-row connector. Its pitch is 5.08 mm. It has a maximum voltage rating of 320 V. It has a female type gender. This device has a maximum current rating of 12 A. 1777811 is housed in polyamide. It uses the screw termination method. This product is 25.04 mm long, 15 mm tall and 27.5 mm deep. Its wire is 12-24 AWG.

Verical:
Conn Terminal Block F 3 POS 5.08mm Screw RA Cable Mount 12A

MASTER:
Conn Terminal Block F 3 POS 5.08mm Screw RA Cable Mount 12A

Online Components:
Conn Terminal Block F 3 POS 5.08mm Screw RA Cable Mount 12A

Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
