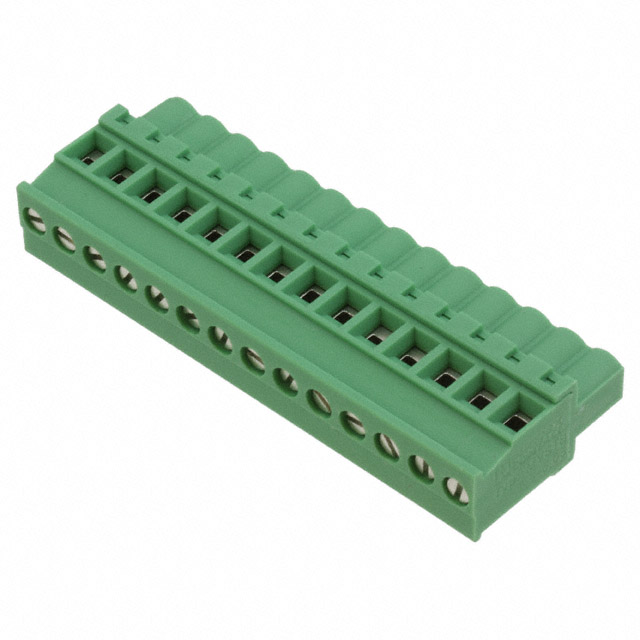

Phoenix Contact MVSTBW 系列 14路 5.08mm节距 印刷电路板接线端子块 1792870, 螺钉端接, 连接器
14 针位端子块 插头,母插口 0.200"(5.08mm) - 270° 自由悬挂
得捷:
TERM BLOCK PLUG 14POS 5.08MM
欧时:
Phoenix Contact MVSTBW 系列 14路 5.08mm节距 印刷电路板接线端子块 1792870, 螺钉端接, 连接器
贸泽:
可插拔接线端子 MVSTBW 2.5/14-ST
艾睿:
Know that you will have strong connections between circuits when you use Phoenix Contact&s;s 1792870 PCB terminal block. This F connector has 14 contacts that are plated with tin. Its pitch is 5.08 mm. It has a straight body orientation. It has a female type gender. It has a maximum voltage rating of 320 V. This is a 1-row connector. 1792870 is housed in polyamide. This device has a maximum current rating of 12 A. This product is 71.12 mm long, 26 mm tall and 12.6 mm deep. Its wire is 12-24 AWG. It uses the screw termination method.
Allied Electronics:
Plug component; 12A; 320 V; Pos: 14; Screw conn; green
Verical:
Conn Terminal Block F 14 POS 5.08mm Screw ST Cable Mount 12A
MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 14 - pitch: 5.08 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin
Online Components:
Conn Terminal Block F 14 POS 5.08mm Screw ST Cable Mount 12A
Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
触点数 14
线规 12AWG ~ 30AWG
触点电镀 Tin
额定电流 12 A
排数 1
电路数 14
易燃性等级 UL 94 V-0
针脚数 14
安装角度 180 °
额定电流Max 12 A
额定电压Max 320 V
额定电压 630 V
工作电压Max 320 V
安装方式 Screw
封装 -
引脚间距 5.08 mm
长度 12.5 mm
宽度 71.12 mm
高度 26 mm
封装 -
引脚间距 5.08 mm
外壳颜色 Green
颜色 Green
触点材质 Tin
外壳材质 Nylon
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536694040
