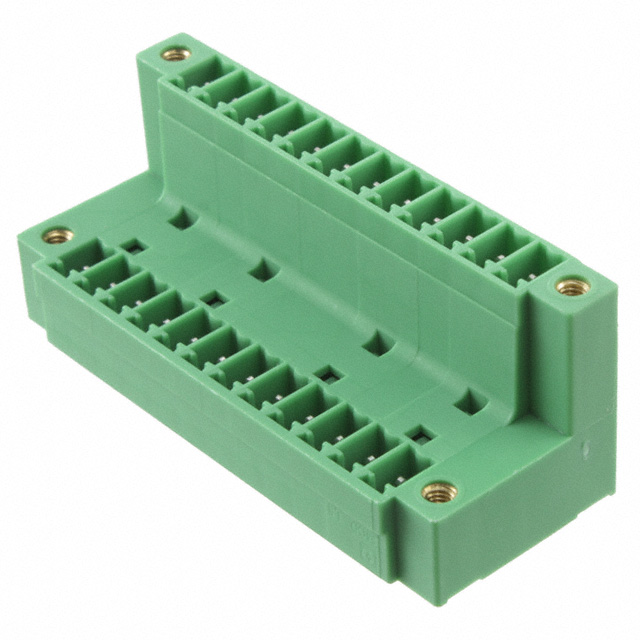

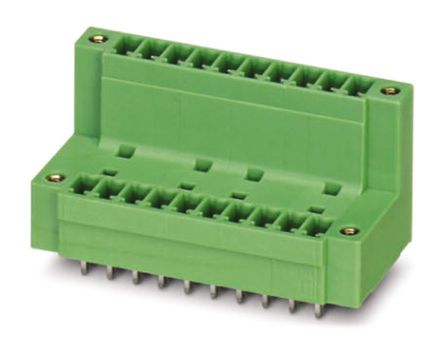

Phoenix Contact PCB 接线端子块 COMBICON MCDV 系列 12路 3.81mm节距 1830350, 焊接端接, 8A
Conn Wire to Board HDR 24 POS 3.81mm Solder ST Thru-Hole
得捷:
TERM BLOCK HDR 24POS VERT 3.81MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON MCDV 系列 12路 3.81mm节距 1830350, 焊接端接, 8A
艾睿:
Look no further than the wire to board 1830350 header connector from Phoenix Contact, a great tool to use when board-to-board interconnects is required. This HDR connector has 24 contacts that are plated with tin. This is a 2-row connector. It has a header type gender. It has a straight body orientation. It has a maximum voltage rating of 160 V. Its pitch is 3.81 mm. This device has a maximum current rating of 8 A. It uses the solder termination method. This product is 56.11 mm long, 21.9 mm tall and 22.7 mm deep. 1830350 is housed in green polybutylene terephthalate.
Verical:
Conn Wire to Board HDR 24 POS 3.81mm Solder ST Thru-Hole
MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 12 - pitch: 3.81 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3
Online Components:
Conn Wire to Board HDR 24 POS 3.81mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
