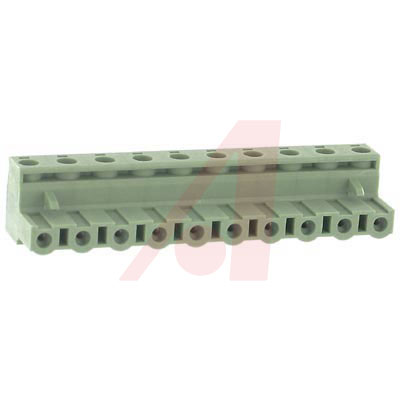

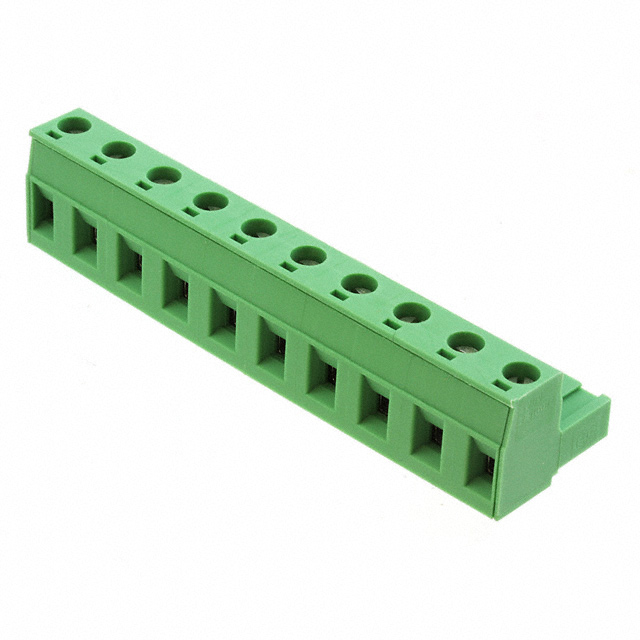

Conn Terminal Block F 10POS 7.5mm Screw RA Cable Mount 12A
7.5 mm Terminal Block Plug
* Connection in accreditation with standard EN-VDE
* Inflammability class accreditation to UL 94 V0
* Polyamide Insulating Material
* Voltage: 300, Amps: 10, AWG: 30-12
得捷:
TERM BLOCK PLUG 10POS STR 7.5MM
艾睿:
Joining multiple circuits is easy with this 1766961 PCB terminal block from Phoenix Contact. This F connector has 10 contacts that are plated with tin. This is a 1-row connector. It has a maximum voltage rating of 630 V. It has a right angle body orientation. Its pitch is 7.5 mm. It has a female type gender. 1766961 is housed in polyamide. This device has a maximum current rating of 12 A. It uses the screw termination method. Its wire is 12-24 AWG. This product is 73 mm long, 15 mm tall and 18.2 mm deep.
Allied Electronics:
Conn; Term Blk; Plug; Screw; 10; 7.5 mm; 30-12 AWG; 10 A; 300 V; PA
MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - number of positions: 10 - pitch: 7.5 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin
Online Components:
Conn Terminal Block F 10 POS 7.5mm Screw RA Cable Mount 12A
Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 630 V - nominal cross section: 2.5 mm² - ...
