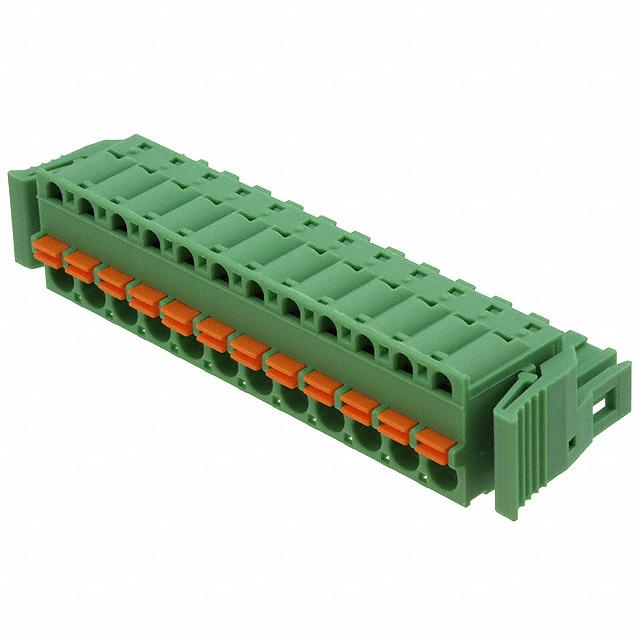

Phoenix Contact COMBICON FKC 系列 5.08mm 节距 12 路 母 绿色 插头 1925799, 弹簧笼端接
针位端子块
得捷:
TERM BLOCK PLUG 12POS STR 5.08MM
欧时:
PCB Connector 1925799
贸泽:
Pluggable Terminal Blocks 12 Pos 5.08mm pitch Plug 24-12AWG Spring
艾睿:
Never worry about wires becoming undone by implementing this spring cage 1925799 PCB terminal block developed by Phoenix Contact. This F connector has 12 contacts that are plated with tin. It has a female type gender. It has a maximum voltage rating of 320 V. Its pitch is 5.08 mm. This is a 1-row connector. It has a straight body orientation. 1925799 is housed in polyamide. This device has a maximum current rating of 12 A. Its wire is 12-24 AWG. This product is 74.38 mm long, 15 mm tall and 25.1 mm deep.
Verical:
Conn Spring Cage F 12 POS 5.08mm ST Panel Mount 12A
MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 12 - pitch: 5.08 mm - connection method: Push-in spring connection - color: green - contact surface: Tin - Article with self-locki
Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
