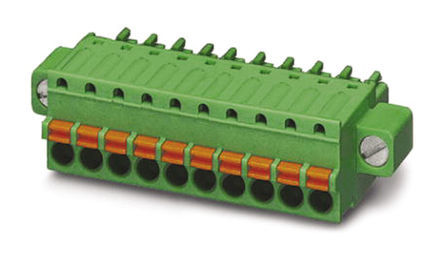

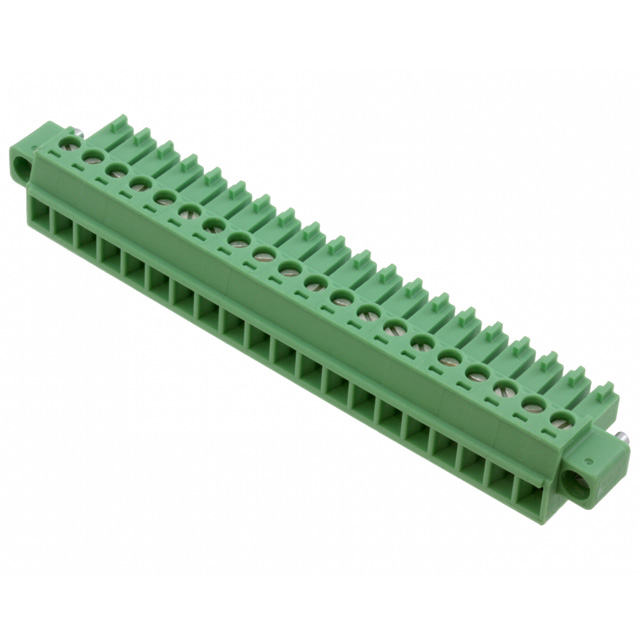

Phoenix Contact MINI COMBICON MC 系列 3.81mm 节距 20 路 母 绿色 插头 1848452, 螺钉端接
Conn Terminal Block F 20 POS 3.81mm Screw ST Panel Mount 8A
得捷:
TERM BLOCK PLUG 20POS STR 3.81MM
欧时:
Phoenix Contact 1848452 MINI COMBICON MC 系列 3.81mm 节距 20 路 母 插头, 螺钉端接 绿色
贸泽:
可插拔接线端子 20 Pos 3.81mm pitch Plug 28-16 AWG Screw
艾睿:
Get the best connections between your circuits with this 1848452 PCB terminal block from Phoenix Contact. This F connector has 20 contacts that are plated with tin. It has a maximum voltage rating of 160 V. This is a 1-row connector. Its pitch is 3.81 mm. It has a straight body orientation. It has a female type gender. This device has a maximum current rating of 8 A. 1848452 is housed in polyamide. Its wire is 16-28 AWG. This product is 86.59 mm long, 11.1 mm tall and 16.1 mm deep. It uses the screw termination method.
MASTER:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 20 - pitch: 3.81 mm - connection method: Screw connection with tension sleeve - color: green - contact surface: Tin
Online Components:
Conn Terminal Block F 20 POS 3.81mm Screw ST Panel Mount 8A
Electro Sonic:
PCB connector - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
