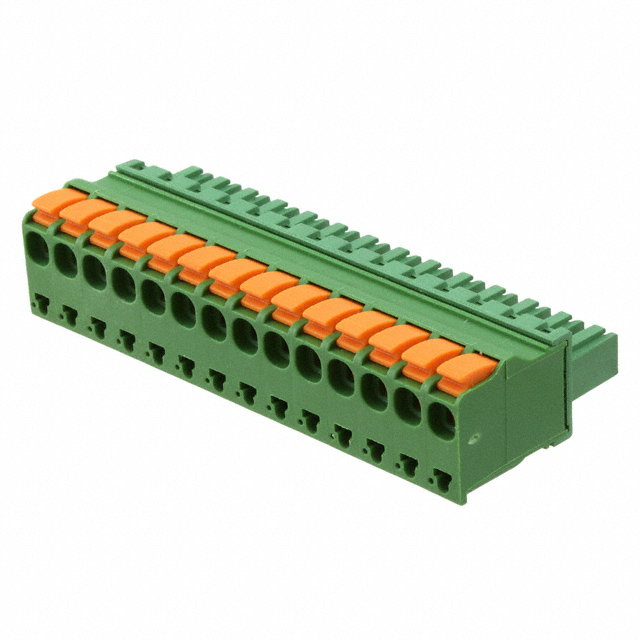

1-1986720-4

Conn Terminal Block F 14POS 3.5mm ST Cable Mount 11A/Contact

14 针位端子块 插头，母插口 0.150"（3.81mm） 180° 自由悬挂

得捷:
TERM BLOCK PLUG 14POS STR 3.81MM

贸泽:
Pluggable Terminal Blocks 3.81MM R/HAND 14 POS STR SPRING PLG

艾睿:
This 1-1986720-4 PCB terminal block manufactured from TE Connectivity will bridge different sections of wires together. This F connector&s;s 14 contacts that are made out of copper alloy/steel. It has a female type gender. It has a straight body orientation. This is a 1-row connector. Its pitch is 3.5 mm. It has a maximum voltage rating of 300 VAC. This device has a maximum current rating of 11 A/contact. 1-1986720-4 is housed in polyamide. This product is 53.34 mm long, 11.65 mm tall and 20.75 mm deep. This quick disconnect terminal has an operating temperature of -40 to 110 °C. Its wire is 14-30 AWG.

Verical:
Conn Terminal Block F 14 POS 3.5mm ST Cable Mount 11A/Contact

Newark:
# AMP - TE CONNECTIVITY  1-1986720-4  STR PLUG SPRING TYPE RH 14P, 3.81MM New

MASTER:
STRAIGHT SPRING TYPE PLUG CONNECTOR, SIDE STACKABLE RIGHT 02 - 25 POLES PITCH 3.

Online Components:
STR PLUG SPRING TYPE RH 14P, 3.81mm

Electro Sonic:
STR PLUG SPRING TYPE RH 14P, 3.81mm
