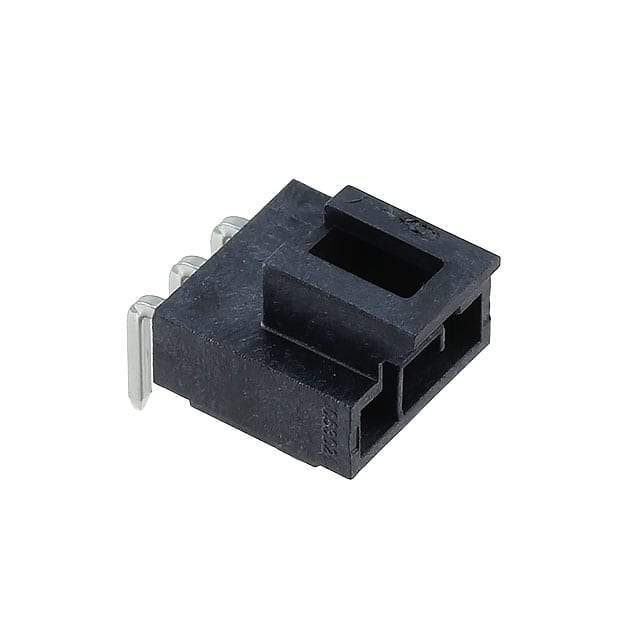

MOLEX 1053131203 Wire-To-Board Connector, Shrouded, 2.5mm, 3Contacts, Header, Nano-Fit 105313 Series, Through Hole New
Connector Header Through Hole, Right Angle 3 position 0.098" 2.50mm
得捷:
CONN HEADER R/A 3POS 2.5MM
立创商城:
1053131203
艾睿:
Conn Wire to Board HDR 3 POS 2.5mm Solder RA Side Entry Thru-Hole Nano-Fit™ Tray
Verical:
Conn Wire to Board HDR 3 POS 2.5mm Solder RA Side Entry Thru-Hole Nano-Fit™ Tray
Newark:
# MOLEX 1053131203 Wire-To-Board Connector, Shrouded, 2.5 mm, 3 Contacts, Header, Nano-Fit 105313 Series, Through Hole New
儒卓力:
**03P NANO FIT MALE 1R R/A 2,50MM **
触点数 3
极性 Male
触点电镀 Gold
绝缘电阻 1000 MΩ
排数 1
针脚数 3
拔插次数 50
额定电流Max 8A/触头
工作温度Max 115 ℃
工作温度Min -40 ℃
额定电压Max 300 V
额定电压 250 V
接触电阻Max 10 mΩ
安装方式 Through Hole
封装 -
高度 6.64 mm
封装 -
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 -40℃ ~ 105℃
产品生命周期 Unknown
包装方式 Tray
制造应用 汽车，通用，工业，医疗，军事，电信, Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
ECCN代码 EAR99
