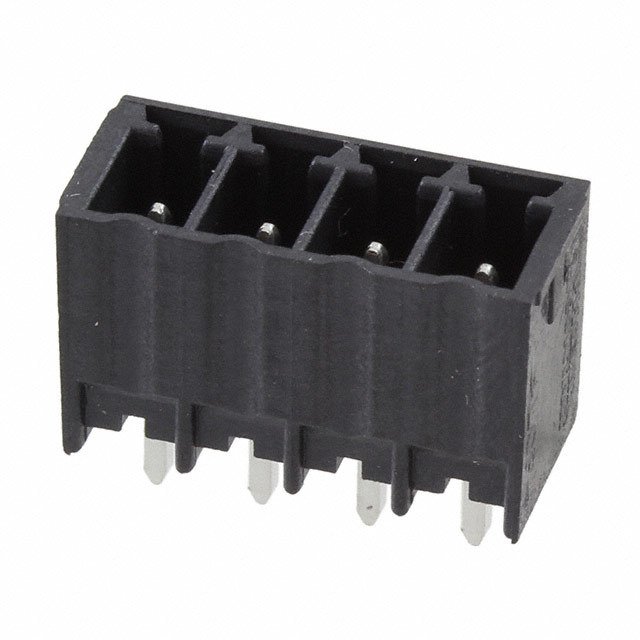

Phoenix Contact PCB 接线端子块 COMBICON MCV 系列 4路 3.5mm节距 1779404, 焊接端接, 8A
Conn Wire to Board HDR 4 POS 3.5mm Solder ST Thru-Hole
得捷:
TERM BLOCK HDR 4POS VERT 3.5MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON MCV 系列 4路 3.5mm节距 1779404, 焊接端接, 8A
贸泽:
可插拔接线端子 4 Pos 3.5mm pitch Through Hole Header
艾睿:
Think of Phoenix Contact&s;s wire to board 1779404 header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector has 4 contacts that are plated with tin. It has a header type gender. This is a 1-row connector. Its pitch is 3.5 mm. It has a maximum voltage rating of 160 V. It has a straight body orientation. This device has a maximum current rating of 8 A. It uses the solder termination method. 1779404 is housed in black liquid crystal polymer.
MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 4 - pitch: 3.5 mm - color: black - contact surface: Tin - mounting: THR soldering - pin layout: Linear pinning - solder pin [P]: 2.6
Online Components:
Conn Wire to Board HDR 4 POS 3.5mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
