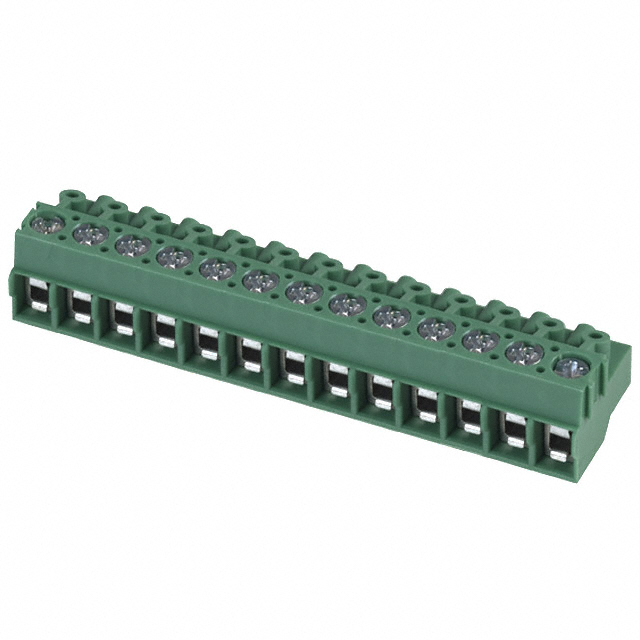

可插拔接线端子 13 Pos 5mm pitch Plug 26-14 AWG Screw
13 针位端子块 无罩接头的插头 0.197"(5.00mm) - 90° 自由悬挂
得捷:
TERM BLOCK PLUG 13POS 90DEG 5MM
贸泽:
可插拔接线端子 13 Pos 5mm pitch Plug 26-14 AWG Screw
Allied Electronics:
Non-Fused Trm Blk, 13Way/Pole, Screw DownTerminals, 26 to 12 AWG Cable Mount, Nylon
MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² - number of positions: 13 - pitch: 5 mm - connection method: Screw connection with wire protector - color: green - contact surface: Tin
Online Components:
Conn Terminal Block F 13 POS 5mm Screw Right Angle/Straight Cable Mount 12A
Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 400 V - nominal cross section: 1.5 mm² - ...
触点数 13
线规 12AWG ~ 26AWG
触点电镀 Tin
排数 1
电路数 13
易燃性等级 UL 94 V-0
针脚数 13
安装角度 180 °
额定电流Max 12 A
额定电压Max 400 V
安装方式 Screw
引脚间距 5.00 mm
长度 14.9 mm
宽度 65 mm
高度 11.4 mm
引脚间距 5.00 mm
外壳颜色 Green
颜色 Green
外壳材质 Nylon
产品生命周期 Active
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536694040
