1762059概述

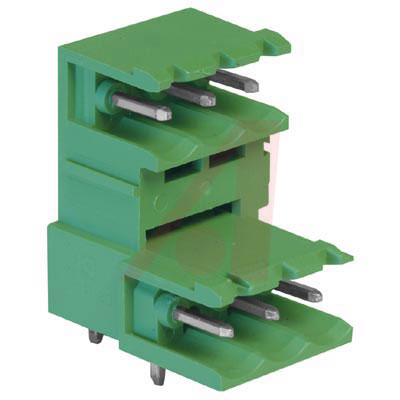

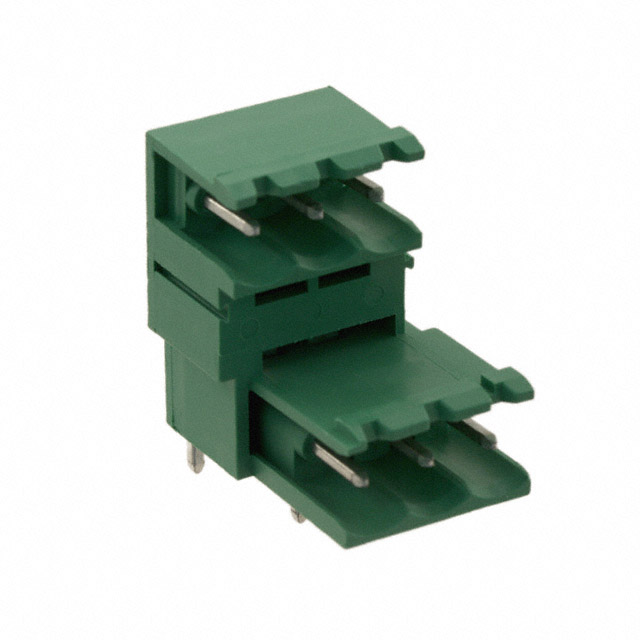

Pluggable Terminal Blocks 3POS 5mm pitch Through Hole Header

6 针位端子块 接头,公引脚,带罩(2 面) 0.197"(5.00mm) 90°,直角 - 通孔


得捷:
TERM BLOCK HDR 6POS 90DEG 5MM


艾睿:
Mounting this shrouded 1762059 header connector from Phoenix Contact to your printed circuit board can help you support multiple physical configuration options. This HDR connector has 6 contacts that are plated with tin. This is a 2-row connector. It has a header type gender. Its pitch is 5 mm. It has a right angle body orientation. It has a maximum voltage rating of 320 V. This device has a maximum current rating of 10 A. This product is 12.5 mm long, 23.7 mm tall and 22.1 mm deep. 1762059 is housed in green polybutylene terephthalate. It uses the solder termination method.


Allied Electronics:
Conn; TermBlk; PCB; Header; DblLvl; 90DegAngl; Sldr; 3Pole; 5mmPitch; COMBICON


Verical:
Conn Shrouded Header HDR 6 POS 5mm Solder RA Thru-Hole


MASTER:
PCB headers - nominal current: 10 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 3 - pitch: 5 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.2


Online Components:
Conn Shrouded Header HDR 6 POS 5mm Solder RA Thru-Hole


Electro Sonic:
PCB headers - nominal current: 10 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...


1762059中文资料参数规格
技术参数

触点数 6

触点电镀 Silver

额定电压DC 508 mV

排数 2

易燃性等级 UL 94 V-0

针脚数 3

安装角度 90.0 °

额定电流Max 10 A

额定电压Max 320 V

额定电压 300 V

封装参数

安装方式 Through Hole

引脚间距 5 mm

外形尺寸

长度 22.1 mm

宽度 22.1 mm

高度 23.7 mm

引脚间距 5 mm

物理参数

外壳颜色 Green

颜色 Green

触点材质 Copper Alloy

外壳材质 Plastic

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536694040

数据手册

在线购买1762059
型号: 1762059
描述:Pluggable Terminal Blocks 3POS 5mm pitch Through Hole Header
