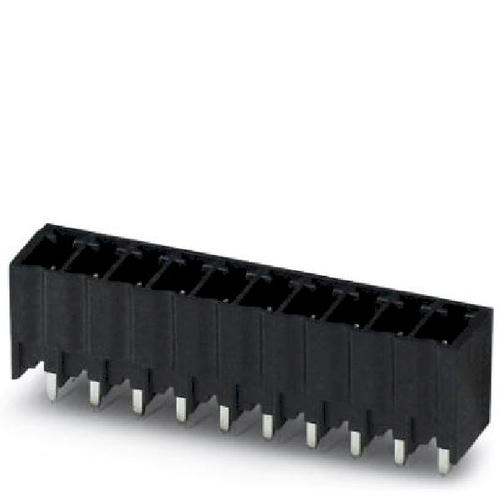

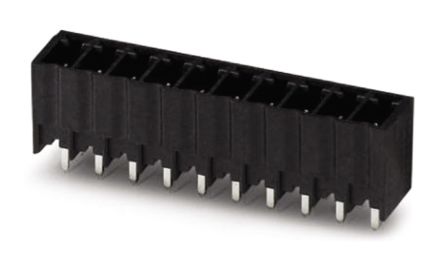

Phoenix Contact PCB 接线端子块 COMBICON MCV 系列 10路 3.5mm节距 1779527, 焊接端接, 8A
10 针位端子块 接头，公引脚，带罩（4 面） 0.138"（3.50mm） 垂直 通孔
得捷:
TERM BLOCK HDR 10POS VERT 3.5MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON MCV 系列 10路 3.5mm节距 1779527, 焊接端接, 8A
艾睿:
Safety is an important concern when designing electronic devices. Phoenix Contact&s;s wire to board 1779527 header connector helps protect your equipment from accidental shortages. This HDR connector has 10 contacts that are plated with tin. This is a 1-row connector. It has a straight body orientation. Its pitch is 3.5 mm. It has a header type gender. It has a maximum voltage rating of 160 V. This device has a maximum current rating of 8 A. It uses the solder termination method. 1779527 is housed in black liquid crystal polymer.
MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - number of positions: 10 - pitch: 3.5 mm - color: black - contact surface: Tin - mounting: THR soldering - pin layout: Linear pinning - solder pin [P]: 2.6
Online Components:
Conn Wire to Board HDR 10 POS 3.5mm Solder ST Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
