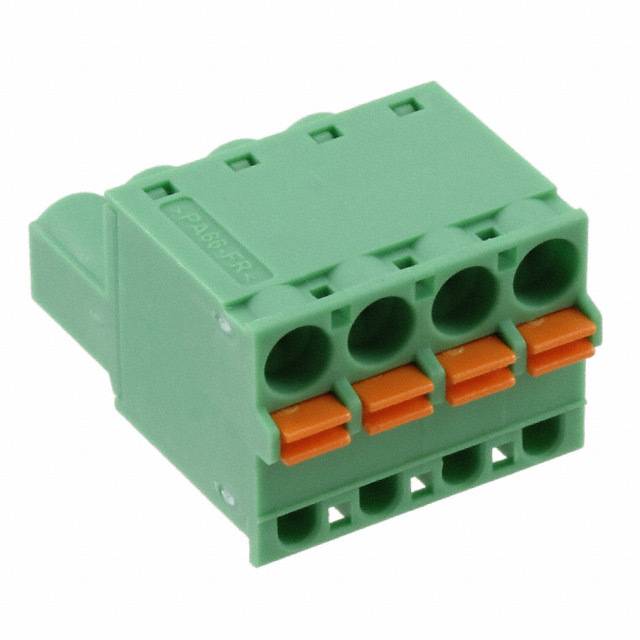

Phoenix Contact COMBICON FKCT 系列 5mm 节距 4 路 母 绿色 插头 1909236, 弹簧笼端接
4 针位端子块 插头，母插口 0.197"（5.00mm） - 180° 自由悬挂
得捷:
TERM BLOCK PLUG 4POS STR 5MM
欧时:
FKCT 2,5/ 4-ST
贸泽:
可插拔接线端子 4 Pos 5mm pitch Plug 24-12AWG Spring
艾睿:
This spring cage 1909236 PCB terminal block manufactured from Phoenix Contact will bridge different sections of wires together. This F connector has 4 contacts that are plated with tin. It has a female type gender. Its pitch is 5 mm. It has a maximum voltage rating of 320 V. This is a 1-row connector. It has a straight body orientation. This device has a maximum current rating of 12 A. 1909236 is housed in polyamide. This product is 20.1 mm long, 15 mm tall and 25.6 mm deep. Its wire is 12-24 AWG.
Verical:
Conn Spring Cage F 4 POS 5mm ST Cable Mount 12A
MASTER:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 4 - pitch: 5 mm - connection method: Push-in spring connection - color: green - contact surface: Tin
Online Components:
Conn Spring Cage F 4 POS 5mm ST Cable Mount 12A
Electro Sonic:
PCB connector - nominal current: 12 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
