Conn Shrouded Header HDR 8POS 5.08mm Solder RA Thru-Hole
针位端子块
得捷:
TERM BLOCK HDR 8POS 90DEG 5.08MM
艾睿:

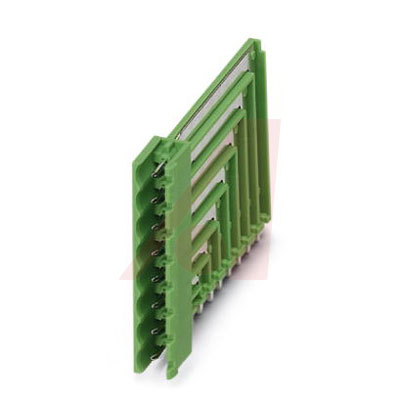

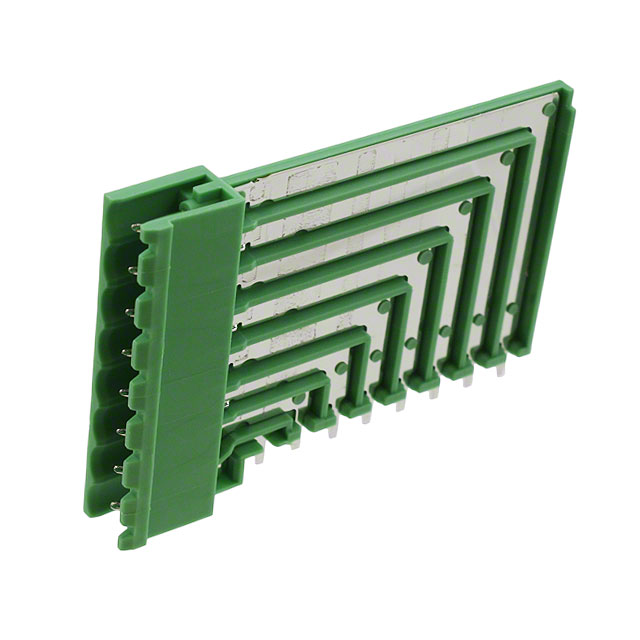

Phoenix Contact&s;s shrouded 1847165 header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This HDR connector has 8 contacts that are plated with tin. It has a header type gender. It has a maximum voltage rating of 320 V. Its pitch is 5.08 mm. It has a right angle body orientation. This is a 1-row connector. This device has a maximum current rating of 8 A. 1847165 is housed in green polyamide. This product is 8.6 mm long, 40.64 mm tall and 59.3 mm deep. It uses the solder termination method.
Allied Electronics:
Conn; TermBlk; PCB; Header; SnglLvl; 90DegAngl; Sldr; 8Pole; 5.08mmPitch; COMBICON
Verical:
Conn Shrouded Header HDR 8 POS 5.08mm Solder RA Thru-Hole
MASTER:
PCB headers - nominal current: 8 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - number of positions: 8 - pitch: 5.08 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.
Online Components:
Conn Shrouded Header HDR 8 POS 5.08mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 320 V - nominal cross section: 2.5 mm² - ...
