Phoenix Contact MINI COMBICON MC 和 MCV 3.5mm 印刷电路板端子块管座MINI COMBICON MC 和 MCV 系列 3.5mm 节距插入式单级直角印刷电路板通孔安装有罩端子块管座。这些 MINI COMBICON MC 端子块提供螺纹法兰和锁定及释放机制### Phoenix Contact MINI COMBICON 3.5mm 两件式端子块

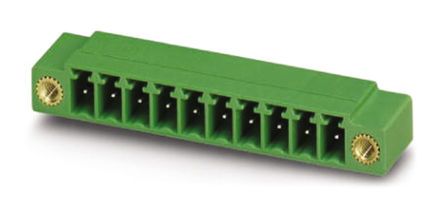

Contact MINI COMBICON MC 和 MCV 3.5mm 印刷电路板端子块管座
MINI COMBICON MC 和 MCV 系列 3.5mm 节距插入式单级直角印刷电路板通孔安装有罩端子块管座。这些 MINI COMBICON MC 端子块提供螺纹法兰和锁定及释放机制
得捷:
TERM BLOCK HDR 11POS 90DEG 3.5MM
欧时:
Phoenix Contact PCB 接线端子块 COMBICON MC 系列 11路 3.5mm节距 1843884, 焊接端接, 8A
贸泽:
可插拔接线端子 11 Pos 3.5mm pitch Through Hole Header
艾睿:
Thanks to Phoenix Contact&s;s wire to board 1843884 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector has 11 contacts that are plated with tin. It has a header type gender. It has a maximum voltage rating of 160 V. Its pitch is 3.5 mm. This is a 1-row connector. It has a right angle body orientation. This device has a maximum current rating of 8 A. It uses the solder termination method. This product is 39.9 mm long, 7.25 mm tall and 9.2 mm deep. 1843884 is housed in green polybutylene terephthalate.
Verical:
Conn Wire to Board HDR 11 POS 3.5mm Solder RA Thru-Hole
Online Components:
Conn Wire to Board HDR 11 POS 3.5mm Solder RA Thru-Hole
Electro Sonic:
PCB headers - nominal current: 8 A - rated voltage III/2: 160 V - nominal cross section: 1.5 mm² - ...
